Sat-Lite Technologies 1531 1.5M Auto Deploy Flyaway VSAT

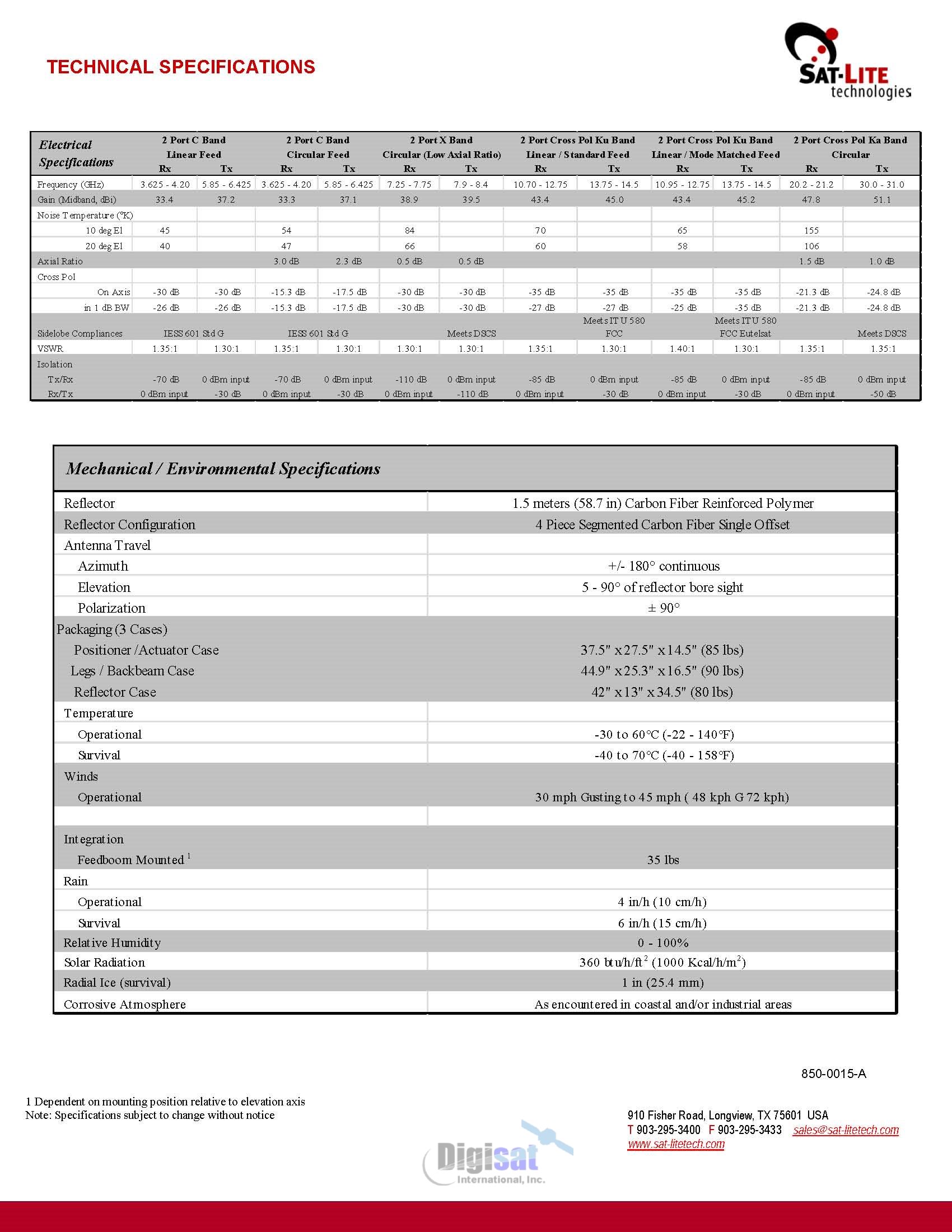

Reflector: 1.5 meters (58.7 in) Carbon Fiber Reinforced Polymer, Antenna Travel Azimuth +/- 180° continuous, Elevation5 - 90° of reflector bore sight, Polarization ± 90°,
1531 1.5M Motorized Flyaway Antenna
The Sat-Lite Technologies 1531 Agilis motorized flyaway antenna is highly portable, compact, light-weight, and can be assembled by one person in less than 15 minutes. The antenna features a 4 piece segmented carbon fiber composite reflector designed to provide exceptional performance in a lightweight package. The motorized elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user when pointing and peaking on a satellite. The antenna and controller pack in 3 ruggedized shipping cases.
In addition, the 1531 fly-away is designed to meet international performance specifications for commercial or military applications and is readily available in C-Band, X-, Ku- and/or Ka-Band frequencies. Multiple feed configurations and paint schemes are readily available.
Features
Intelsat and Eutelsat Compliant
Multi-Band C, X, Ku or Ka band Capable
(4) Piece Segmented Carbon Fiber Reflector
Embedded 3 Axis Controller for Autolocate and Tracking Options
Ships in 3 Ruggedized Cases
High Gain / Low Cross Pol Design
Superior Stability in Wind
Multiple Integration Options
Excellent Reliability
Minimal Maintenance
Typical users may include the following: Federal and State emergency responders, Homeland Security, FEMA, Oil and Gas Industry, IP Based Communications, Broadcast SNG, Sporting Event Broadcasting, Critical Up-Linking, & Backup / Redundancy Communications
