Sat-Lite Technologies 1256 1.2M Novus Ku-Band Vehicle Mount Drive-Away Antenna
Carbon Composite, Parabolic Single Offset, 0.8 F/D, Elevation: 0 - 90° of reflector bore sight

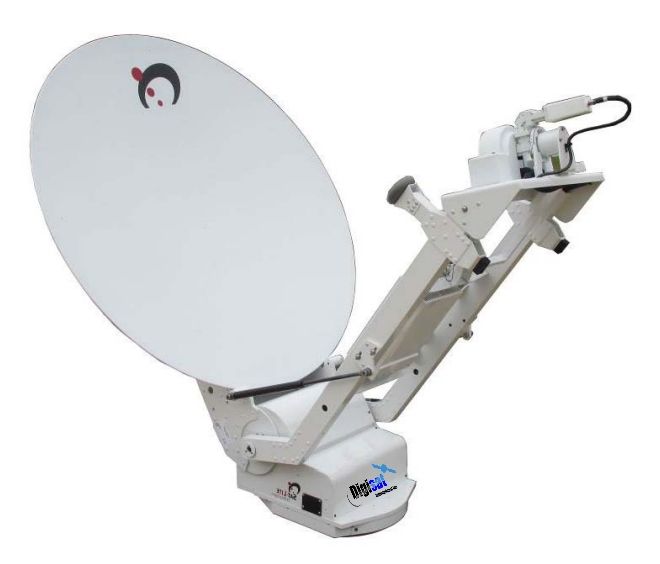

1256 1.2M Novus Vehicle Mounted Antenna
The Sat-Lite 1256 1.2 meter Novus vehicle mount drive-away antenna is an ultra-high performance VSAT for SNG or satellite internet. It features a space saving design with a low stow height configuration and compact pedestal that minimizes vehicle mounting constraints. Also included is an integrated auto-locate controller with manual override. The integrated control system includes an option for a programmable digital video receiver that can be used to positively identify the satellite and automatically peak the antenna.
The 1256 antenna features a precision tooled long focal length composite reflector designed to provide exceptional performance in a lightweight package. Up to 30 lbs of payload can be mounted on the feed boom for multiple integration packages and options. Options exist for heavier payloads as well. The antenna is designed to meet Ku Band RF performance specifications for Intelsat, Eutelsat, and FCC requirements (using the proper feed).
Key Features
Sat-Lite Cirrus ACU for efficient auto acquisition using DVB-S2, GPS & Compass
DVB Receiver Interface for Positive Satellite ID
High Performance Composite Reflector
Handcrank for all 3 Axes Included
15 1/4” Stow Height and Space-Optimizing Stowed Configuration
Designed for Boom Mounted Single Thread Integration Packages up to 30 lbs
Intelsat / FCC / Eutelsat Compliance Options using appropriate feeds
Federal and State emergency responders, Homeland Security, FEMA, Oil and Gas Industry, Point of Sale Solutions, IP Based Communications, Video Teleconferencing, Less Demanding SNG Requirements
