Sat-Lite Technolgies 1821 1.8M Manual Point Quick Deployable Antenna
carbon fibre main reflector, light-weight pedestal assembly, manual point and peak, Intelsat and Eutelsat approved

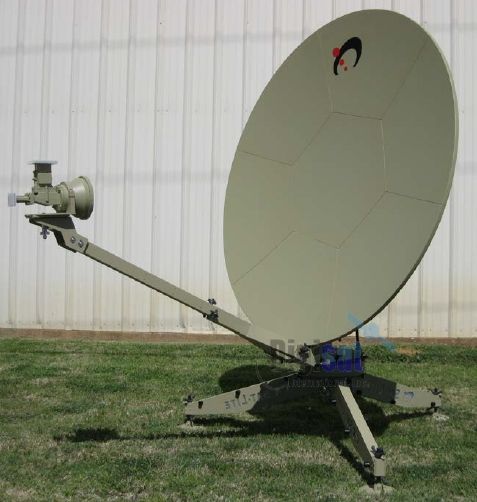

1821 1.8M Manual Pointing Flyaway
The Sat-Lite Technologies Model 1821 Agilis carbon fiber flyaway antenna offers superior performance in a lightweight, portable package. This antenna features a 7 piece carbon fiber segmented reflector designed to provide high gain and low cross pol characteristics. The custom-designed elevation-over-azimuth tripod pedestal provides high stiffness with minimal weight. The antenna components are modular in design which provides options for motorization and tracking requirements. High performance molded cases are included.
The antenna is designed to meet international performance specifications for commercial or off-the-shelf military applications and is readily available in C-, X-, Ka-, DBS- and Ku-Band frequencies. Multiple feed and integration packages are available with a quick change / quick pack configuration The integrated boom assembly with BUC and LNB packs in a single case for quick installation. Integrated feedbooms for the 1921 can be supplied which will allow a quick change from one frequency band to another.
Features
Intelsat and Eutelsat Compliant
Multi-Band C-, X-, Ka-, DBS- or Ku-band Capable
(7) Piece Segmented Carbon Fiber Reflector
Compact Pedestal featuring easy point and peak control
Ships in four rugged transport cases
High Gain / Low Cross Pol Design
Superior Stability in Wind
Multiple Integration Options
Excellent Reliability
Minimal Maintenance
Typical users include Federal and State emergency responders, Homeland Security, FEMA, Oil and Gas Industry, IP Based Communications, Broadcast SNG, Sporting Event Broadcasting, Critical Up-Linking, & Backup / Redundancy Communications
