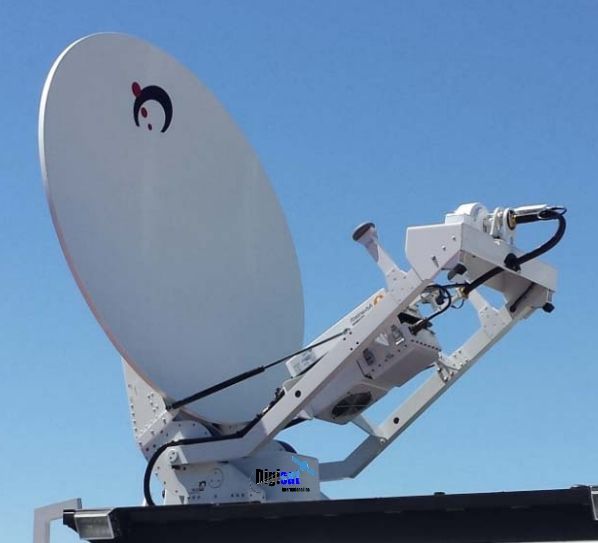

Sat-Lite Peloris 1500 1.5M Vehicle Mounted SNG VSAT Antenna System

1500 1.5M Vehicle Mount SNG VSAT Antenna

The Sat-Lite 1500 Peloris 1.5 meter vehicle mounted VSAT antennas are high performance light weight designs for SNG (satellite news gathering) and highly secure military communications applications. Key features include a precision carbon fiber reflector combined with a light weight pedestal that provides the integrator with a low stow height, space saving profile. The elevation over azimuth pedestal provides excellent stiffness and low backlash characteristics for applications including Ka-band and Ku-Band frequencies.

The Peloris 1500 antenna is also designed for mounting redundant RF packages of up to 100 lbs directly on the feedboom. A proprietary rack mount Sat-Lite Technologies Cirrus Antenna Controller offers auto locate features using GPS, compass, and DVBS2 receiver to quickly identify the satellite. The standard product includes a keypad interface in the rack as well as an enhanced ethernet GUI for laptop or remote interface. The Peloris 1500 antenna is designed to meet international RF performance requirements for commercial and military applications including Intelsat, Eutelsat, and FCC specifications.

Key Features

 High Performance SNG Applications

 Intelsat / Eutelsat Compliant with Appropriate Feed

 Sat-Lite Cirrus Controller

 Carbon Fiber Reflector

 Handcrank Included

 Low Stow Height and Space Optimizing Stowed Configuration

 Designed for Boom Mounted Redundant RF Packages up to 100 lbs

 Multiple Feed Options for Ka-, X-, and Ku-Band
