Radeus Labs RL3500 Synthesized L-Band Beacon Receiver

3500 Series Beacon Receiver

The Radeus RL3500 is a high performance, fully synthesized, hybrid analog/digital beacon receiver that blends state of the art tracking stability with proven reliability. It features an L-band range of 930 to 2300 MHz, Digital Level reference setting, serial M&C interface, and power up temperature compensation for rapid signal acquisition.

The 3500 series provides high end features in a modest single rack form factor and features a 1kHz tuning resolution, a wide range of software selectable detection bandwidths and Accu-track searchable bandwidths to accommodate frequency drift in tracking beacons.

RL3500 Features

• Non-coherent, FFT detection method

• BNC reference output on front panel

• 5G ready, multiple acquisition bandwidths to reduce impact of ranging and modulation

• Output smoothing to minimize effects of carrier amplitude variance

• Larger 2x20 display

• Ethernet connectable GUI

• Serial M&C control interface for remote control

• Front panel selectable LOs for use with an external LNB/BDC

• 1 kHz tuning steps

The output of the Beacon Receiver is a DC voltage proportional to the input signal level to facilitate both antenna control and uplink power control applications. “Loss of Carrier” indication is provided in the event the tracking signal is lost via form “C” relay contacts. A larger front panel LCD or network based GUI displays the beacon frequency, relative signal level, carrier lock or alarm, and input signal level.

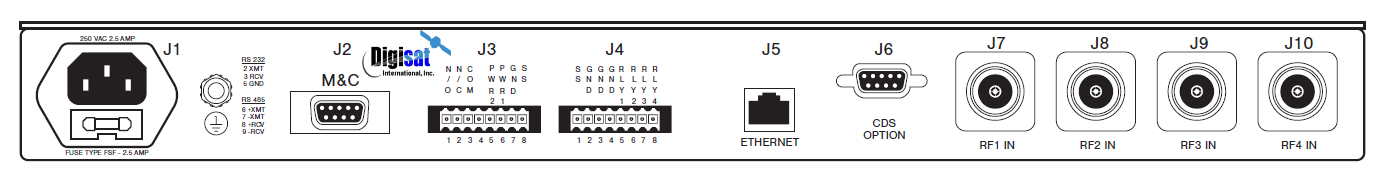

Interface

Part Numbering:	Typical part number 3500-L1N, 3500-Ku4S
BASE MODEL	3500
BANDS NUMBER OF	L, S, C, X, Ku, Ka
RF INPUTS @ BAND	1, 2 & 4 input options
INPUT CONNECTOR	N = N Type, S = SMA, F= F Type
