Quintech Xtreme RP1 Modular LNB Power Supply

quintech rps 2460 lnb power supply

Quintech RPS 2460 Redundant DC Power Supply System

CPI SAT Ku-Band Tx/Rx 4-Port Diplexer 114023-09

CPI SAT Ku-Band Tx/Rx 4-Port Diplexer 114023-09

Be the first to review this product
SKU
QT-RP1
Request a Quote
Wish List Compare
Quintech Xtreme RP1 Modular LNB Power Supply is available to buy in increments of 1

Up to eight hot-swappable Card Slots with flexible configurations

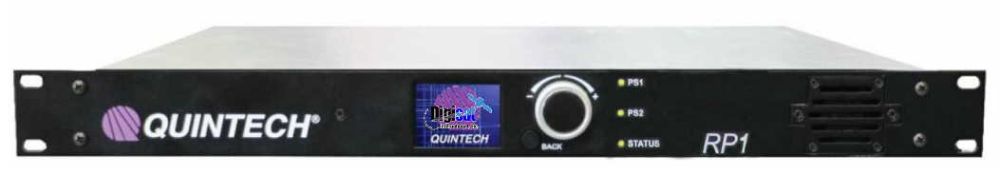

main product photo

RP1 Modular LNB Power Supply System

The Quintech RP1 LNB power supply system is housed in a 1RU modular chassis that provides centralized power control and signal redundancy options. Hot-Swappable redundant power supplies, I/O Modules, and a field replaceable cooling fan provide maximum reliability. Eight card slots provide combinations of up to 16 Bias-T DC Power Inserters, eight 2x1 RF sensing redundancy switches with Q-SENSE and LNB power, or 16 quick disconnect switchable DC power outputs. Remote control is available via web browser GUI, SNMP, or Quintech API protocol over TCP/IP.

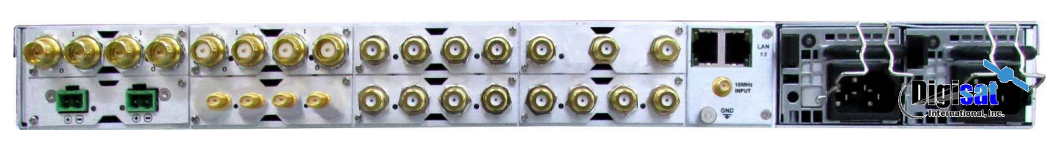

 rp1 rear interface

Features & Benefits

  • 700-3000 MHz Operating Range
  • Eight Hot-swappable Card Slots with flexible configurations
  • LNB Status Monitoring
  • 10 MHz Reference Distribution to all slots
  • Redundant Hot Swappable Power Supplies
  • Field Replaceable Cooling Fan

 Typical Configuration Diagram

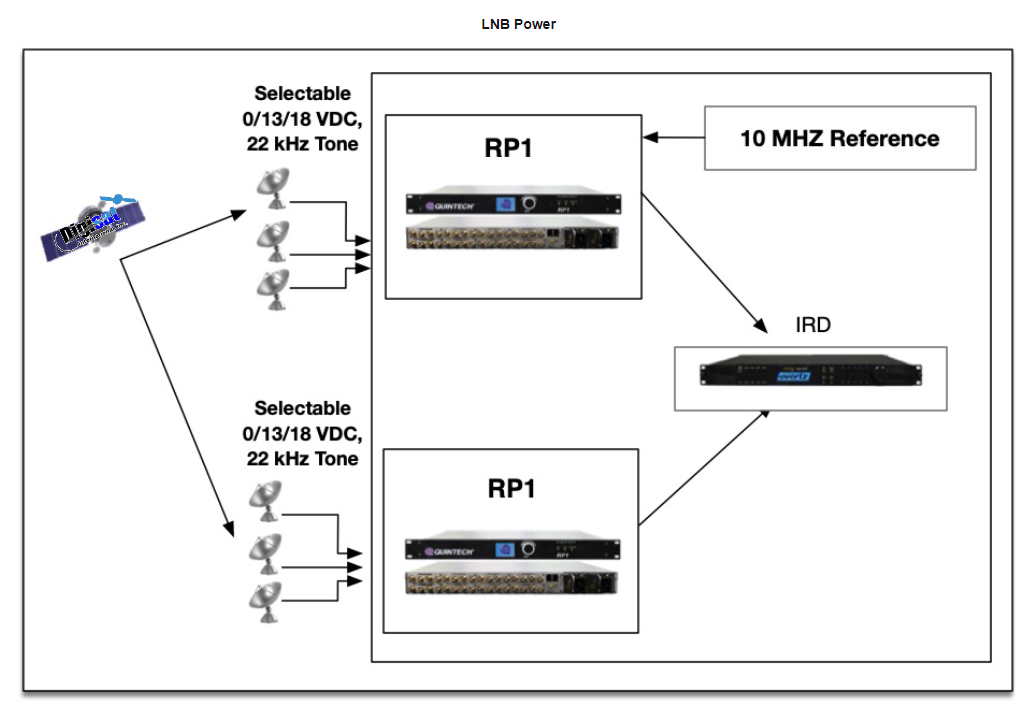

LNB Power Diagram

Antenna Redundancy

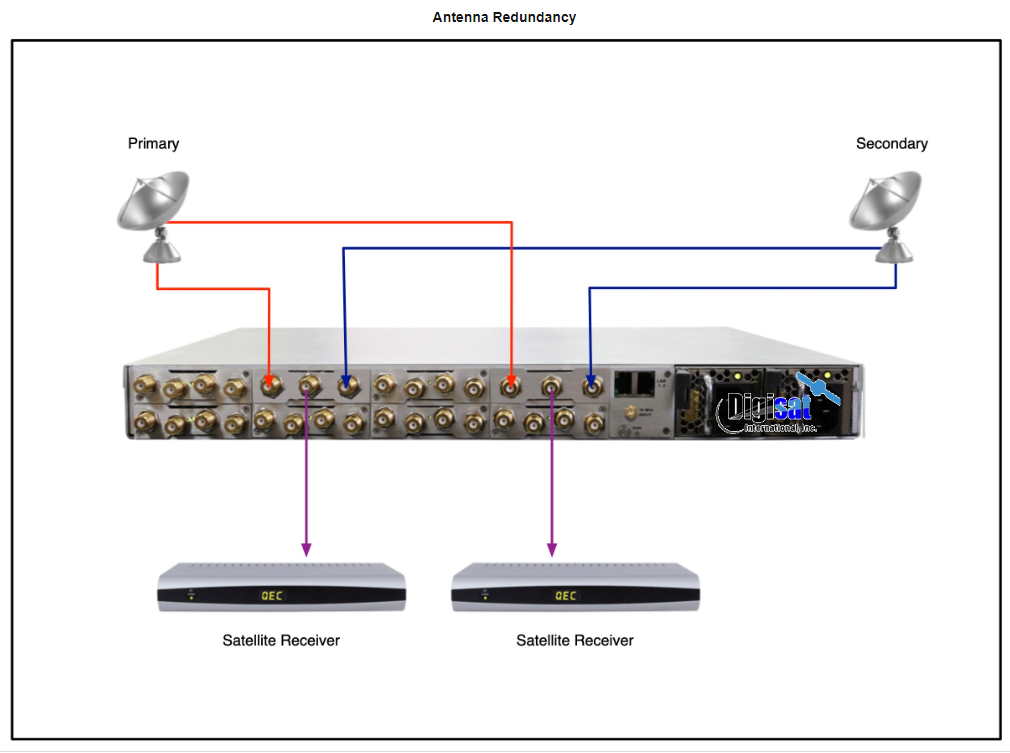

Antenna Redundancy Diagram

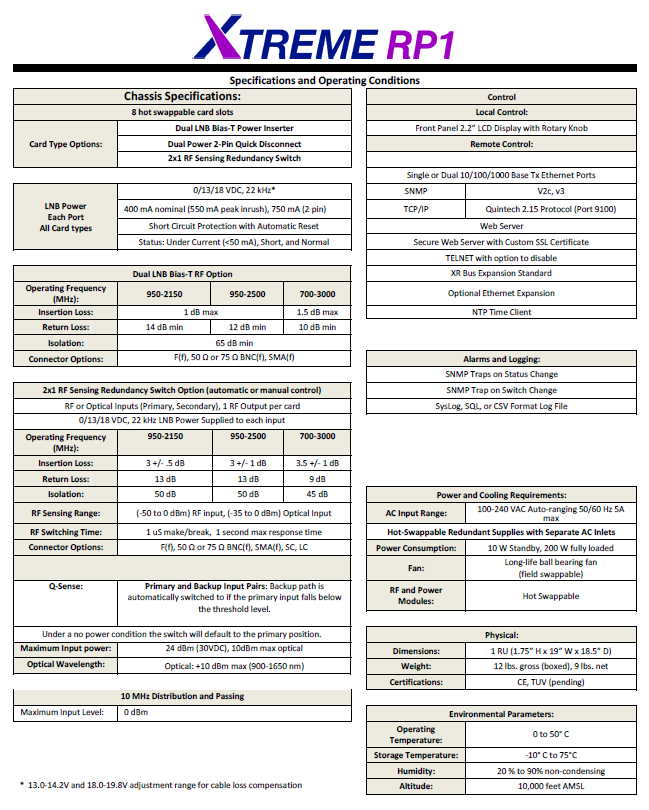

RP1 Specifications

1RU Chassis w/LNB Power Insertion and Redundancy Switch Cards
