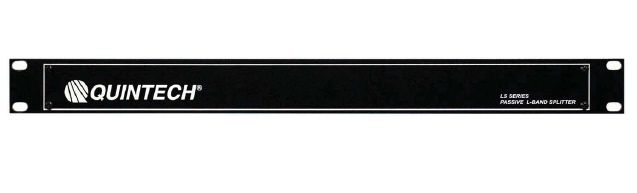

Quintech Electronics LS16 2150P 16-Way Passive L-Band Splitter

The LS162150P1FNA000 is a commercial quality passive 16-way splitter that meets strict level, match, and loss specifications achieved through the use of Quintech Electronics proprietary microstrip and SMT technology. It operates over the 950-2150 MHz frequency range and enables the splitting of RF signals with repeatable performance over the entire frequency range and across all I/O ports. Output port 1 is power passing for LNB power from a satellite receiver. Both DC paths are diode protected; thus, LNB power is redundant if both paths are powered.

Note: All unused RF output ports must have 75  terminations. A rear panel terminal is provided for external LNB power
insertion.

High Performance

The LS 2150P Series are passive satellite L-band splitters which permit simple splitting of RF signals. These commercial quality splitters meet strict level, match and loss specifications achieved through the use of Quintech's proprietary microstrip and SMT technology

Features & Benefits

Convenient, centralized rack mount designs improve cable management.

Microstrip design provides better performance and reliability.

Larger configurations eliminate cascaded combiners for better performance.

Active (zero loss) combiners allow for ease in RF budget design.

Custom configurations for optimization of rack space and increased flexibility.

Greatly improves cable management and aesthetics by allowing for easy access to cable routing and easing identification of cabling.

Reduces cable connector failures by eliminating the need for frequent manual connects/disconnects.
