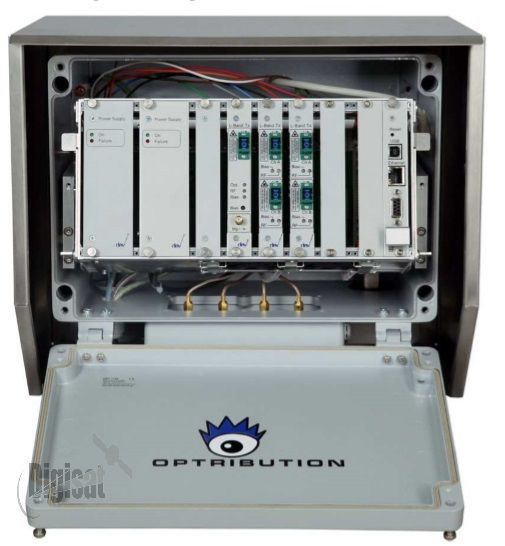

DEV 7152 RF Over Fiber Outdoor Chassis

DEV 7152 Outdoor RF Over Fiber System

The DEV 7152 is an outdoor chassis providing 5 slots for various RF over Fiber modules including CWDM of the OPTRIBUTION series. With an integrated controller all functionalities are accessible via the intuitive Web Interface or via SNMP protocol. The 7152 can be configured for 4+1 redundancy operation and is equipped with redundant power supplies.  It is designed to withstand harsh environmental conditions while maintaining the highest reliability.

Benefits

• Highly ruggedized RF over Fiber Outdoor Solution
• Mounted directly at the Antenna Mast close to the LNB
• Best possible Signal Quality due to direct Signal Conversion
• Enhanced System Reliability via 4+1 Redundancy
• Permanent Signal Monitoring and Recording
• Intuitive and complete Operation with DEV Web Interface
• Complete SNMP-MIB for seamless Integration into all common M&C Systems

Features

• 5 Slots for L-Band over Fiber Tx- or Rx-Modules
• 4+1 Redundancy
• CWDM capable for up to 5 Channels
• Ethernet to Optical Converter
• 50 Ohm SMA (f) or N (f) and 75 Ohm F (f)
• Temperature Range -30...+60 °C
• Pole Mount for Antenna Mast Installation
• Wall mountable
• DEV Web Interface
• Redundancy Path Gain Compensation (RGC)
• Signal Recording and Data Backup
• SNMP Support
• Power Supply Redundancy
