DEV 7114 RF Over Fiber Optic System
The DEV 7114 is a 4 RU chassis providing 16 slots for RF over Fiber modules of the Optribution series plus integrated RF distribution. With the integrated controller all functionalities are accessible via the intuitive Web Interface or via SNMP protocol. The 7114 can be configured for 1+1 redundancyor N+1 redundancy operation. Configuration versatility and flexible RF signal distribution forms the migration path for highest integration of RF and optical functionalities within a single chassis.
FEATURES
- RF over Fiber Modules of the Optribution Series
- RF optical Transmission plus RF Distribution from 1:4 up to 1:128
- IRD controlled Switches from 4x16 up to 4x64
- 1+1 Redundancy
- N+1 Redundancy
- CWDM capable for up to 8 Channels
- Ethernet to Optical Converter
- 50 Ohm SMA (f), 75 Ohm F (f), and 75 Ohm BNC (f)
- DEV Web Interface
- Automatic Switch Back for 1+1 Redundancy
- Redundancy Path Gain Compensation (RGC) for N+1 Redundancy
- Signal Recording and Data Backup
- SNMP Support
- Power Line Redundancy
- Power Supply Redundancy
BENEFITS
- Space and Cost saving Solution, Merge of RF Signal Distribution and RF optical Transmission
- Increased Signal Performance and reduced Power Consumption due to integrated Functionalities
- Enhanced System Reliability via 1+1 Redundancy or N+1 Redundancy
- Permanent Signal Monitoring and Recording
- Intuitive and complete Operation with DEV Web Interface
- Complete SNMPSimple Network Management Protocol (SNMP) is a remote protocol used for managing devices in M&C Systems.-MIB for seamless Integration into all common M&C Systems
Specifications
Capacity
Front Side 16 Slots for Optical Modules

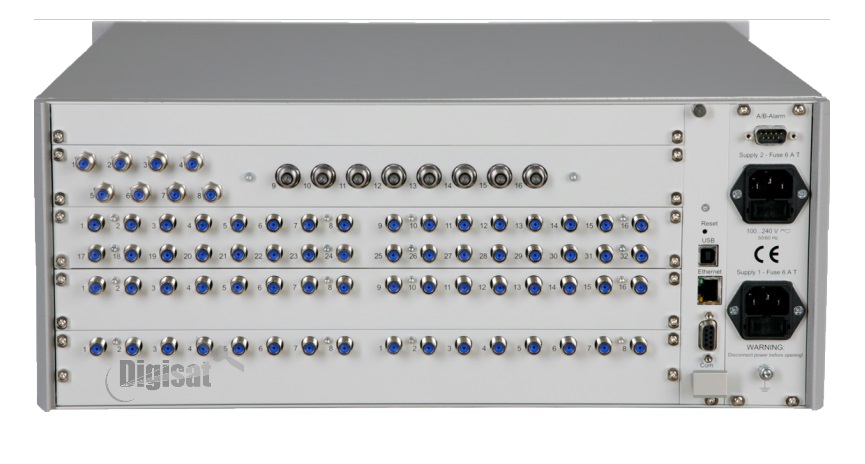

Rear Side 4 horizontal Slots with up to 32 RF Ports, each
Remote Communication
Interface (Connector) • Ethernet (RJ-45)
Remote Control & Surveillance
(Interface)
• via Web Interface (Ethernet);
• via SNMP (Ethernet).
Redundant Power Supply
Supply Voltage 100…240 V AC supplied by two different Lines
Power Consumption <100 VA (with 2 Power Supply Modules installed)
General Specifications
Size 19” (483 mm) Width, 4 RU (178 mm) Height,
~490 mm + max. 80 mm (Optical Connectors) Depth
Weight ~10 kg (empty Chassis)
Environmental Conditions ETS 300019 Part 1-3 Class 3.1
Option 16 Additional Power Module 16 V, 50 W horizontal Use
for 4 RU Chassis
With ≥8 optical modules the 3rd power supply module is recommended for keeping the power supply
redundancy.
Power Consumption <150 VA (with 3 Power Supply Modules installed)
Option 28 Automatic Switch Back
Automatic switch back enables the autonomous switch back from the redundant link to the main link
based on the RF sensing functionality.
Available in combination with 1+1 redundancy options, only
Option 55 Change Ethernet to optical Ethernet Interface; 30 km
Option 56 Change Ethernet to optical Ethernet Interface; 1530 nm; 100 km
Option 57 Change Ethernet to optical Ethernet Interface; 1550 nm; 100 km
With Option 55, Option 56, or Option 57 the CPU module of the device provides a 100Base-FX
Ethernet interface with SC/PC connectors (instead of the standard 100Base-TX Ethernet interface
with RJ-45 connector) for the optical transmission of Ethernet signals.
