Paradise VSAT RCPD-1100-LX Redundant Control Panel for Dual 1:1 Systems

VSAT RCPD-1100-LX Redundant Control Panel for Dual 1:1 Systems

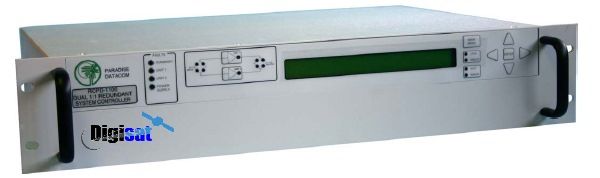

Paradise Datacom Redundant Control Panel for Dual 1:1 Systems (RCPD-1100-LX) provides control of an entire VSAT SSPA and LNB system.

Available in two models, the RCPD-1100-L1 model is used in single L-band source systems; the RCPD-1100-L2 model is used in dual L-band source systems.

Versatile Configurations

Its combination of switch drive output and LNB bias, along with its capacity for external alarm inputs, enable the RCPD-1100 to be enabled in a variety of system configurations.  To achieve this functionality, the RCPD-1100 can control two waveguide switches for the outdoor portion of the system, and optionally two coaxial switches at the system input.  Control of the RCPD-1100 can be handled through front panel operation, or remotely through a parallel or serial connection to a computer.

Completely Redundant

Two separate power supplies are provided for fully redundant operation. Either of the two supplies is capable of operating the system and its associated switches.  If fault alarms are detected in the on-line transceiver system, the RCPD-1100 can be programmed to provide immediate switchover to the stand-by transceiver.
