Teledyne Paradise Datacom Ku-Band Mini Compact Antenna Mounted SSPA System
Ku-Band power ratings from 50 to 80 Watts, extremely compact and reliable

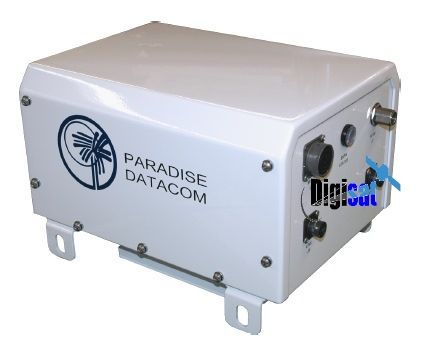

Ku-Band Mini Compact Antenna Mounted SSPA System
The Teledyne Paradise Datacom Mini Compact Outdoor Ku-band Solid State Power Amplifier (SSPA) Systems are designed for extreme environmental conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry. This allows solid state technology to be used in applications that have long been reserved for TWTAs.
Remote Amplifier Controller
Space Saving Design
At less than 24.5 lbs. (11.2 kg), and 19.6 lbs. (8.9 kg) for the 80W Ku-Band units, and only slightly larger than a lunch box, this family of SSPAs is available in the following output power levels:
C-Band: 75W, 100W, 200W
X-Band: 50W, 75W, 100W, 200W
Ku-Band: 50W, 80W
RF Over Fiber Interface
SSPA Electrical Specifications:
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Gain Gain Flatness Gain Slope Gain Variation vs. Temp. Gain Adjustment |
range full band (C-,X-,Ku-bands) full band (Extended C-Band, Extended Ku-Band) per 40 MHz (C-, X-, Ku-bands) -40 °C to +55 °C 0.1 dB resolution |
55-75 ± 1.0 ± 1.5 ± 0.3 ± 1.5 20 |
dB dB dB dB/40 MHz dB dB |
|
Intermodulation Distortion |
Two-Tone 3 dB back off from P1dB |
-25 |
dBc |
|
AM/PM Conversion |
@ rated P1dB @ P1dB - 1 dB @ P1dB - 2 dB |
3.5 1.5 1.0 |
o/dB o/dB o/dB |
|
Spurious (SSPA only) Harmonics (SSPA only) |
(@ rated P1dB) (@ rated P1dB - 3 dB) (C-, X-, Ku-bands) |
-60 -50 |
dBc dBc |
|
Input/Output VSWR |
All units except Extended C-Band Extended C-Band units |
1.30:1 1.50:1 |
|
|
Noise Figure |
at maximum gain (C-, X-, Ku-bands) |
10 |
dB |
|
Group Delay (per 40 MHz segment) |
Linear Parabolic Ripple |
0.01 0.003 1.0 |
ns/MHz ns/MHz2 ns p-p |
|
Transmit Band Noise Output Power Density |
TX Band RX Band (C-, X-, Ku-bands) |
-75 -150 |
dBW/4 KHz dBW/4 KHz |
|
Residual AM Noise |
0 - 10 KHz 10 KHz - 500 KHz 500 KHz - 1 MHz |
-45 -20 (1.25 + log F) -80 |
dBc dBc dBc |
|
Phase Noise (SSPA only) |
Offset frequency from carrier 10 Hz 100 Hz 1 KHz 10 KHz 100 KHz 1 MHz |
-90 -100 -110 -120 -125 -130 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
|
RF Power Detector |
Psat to (Psat - 20 dBm) |
20 ± 1.0 |
dBm |
Ku-Band Environmental Specifications:
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Operating Temperature |
Ambient |
-40 to +60 |
°C |
|
Relative Humidity |
Condensing |
100 |
% |
|
Cooling System |
Integrated, forced air |
265 |
CFM |
|
Altitude |
No temperature de-rating up to 10,000 ft, (3000 m) De-rate maximum temperature by 2 °C per 1,000 ft (300 m) beyond 10,000 ft. |
||
|
Shock |
50 g p-p, 11 msec pulses |
||
|
Vibration |
3g rms 30 min. 5-2000 Hz |
||
Paradise Mini Compact SSPA Frequency Plans:
|
Band |
Frequency Band |
IF Input |
LO Frequency |
RF Output |
Gain Change |
|
C |
Standard C-Band |
950 - 1525 MHz |
4.900 GHz |
5.850 - 6.425 GHz |
0-4 dB |
|
C |
Extended C-Band |
950 - 1825 MHz |
4.900 GHz |
5.850 - 6.725 GHz |
0-4 dB |
|
X |
Standard X-Band |
950 - 1450 MHz |
6.950 GHz |
7.900 - 8.400 GHz |
0-2 dB |
|
Ku |
Standard Ku-Band |
950 - 1450 MHz |
13.050 GHz |
14.00 - 14.50 GHz |
0-2 dB |
|
Ku |
Extended Ku-Band |
950 - 1700 MHz |
12.800 GHz |
13.75 - 14.50 GHz |
0-2 dB |
|
Ku |
Sub Ku-Band 1 |
1200 - 1450 MHz |
11.800 GHz |
13.00 - 13.25 GHz |
0-2 dB |
|
Ku |
Sub Ku-Band 2 |
950 - 1450 MHz |
11.800 GHz |
12.75 - 13.25 GHz |
0-2 dB |
Mechanical Specs:
|
PARAMETER |
NOTES |
LIMITS |
UNITS/DETAILS |
||
|
Size |
width X length X height |
9.0 X 12.0 X 6.50 229 X 305 X 165 |
inches mm |
||
|
Weight (± 3%) |
Base unit 80W Ku-Band unit |
24.5 (11.2) 19.6 (8.9) |
lbs. (kg) lbs. (kg) |
||
|
Finish |
Paint |
White; powder coat |
|
||
|
Connectors |
RF Input RF Output - Ku-Band RF Output - C-Band RF Output - X-Band RF Output Sample Line Power Monitor and Control Link Port Redundancy Switch Auxiliary +15VDC LNB Power (500 mA) |
Type N WR75 Waveguide WR137 Waveguide WR112 Waveguide Type N 3-pin MS-type 32-pin MS-type 6-pin MS type 6-pin MS-type 6-pin MS-type |
Female Grooved flange (PBR-120) CPR137G flange (PDR-70) CPR112G flange (PDR-84) Female Plug Socket Socket Socket Socket |
||
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
|||||
|
Frequency Range |
(see options for extended band) |
5.850 to 6.425 |
GHz |
|
|||||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPACC3075AC_XXXX HPACC3100AC_XXXX HPACC3200AC_XXXX |
Psat / P1dB 48.8/48.5 (76/70) 50.0/49.5 (100/89) 1 |
dBm (W) dBm (W) |
|
|||||
|
Power Requirements Line Voltage Line Frequency Line Power |
power factor corrected HPACC3075AC_XXXX HPACC3100AC_XXXX HPACC3200AC_XXXX |
90 to 265 47 to 63 550 660 1 |
VAC Hz W W |
|
|||||
|
Extended C-Band 5.85 to 6.725 GHz |
De-rate output power by 1.0 dB linearly from 6.425 - 6.725 GHz |
|
|||||||
|
X-BAND |
PARAMETER |
NOTES |
LIMITS |
UNITS |
|||||
|
Frequency Range |
7.900 to 8.400 |
GHz |
|
||||||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAXX3050AC_XXXX HPAXX3075AC_XXXX HPAXX3100AC_XXXX HPAXX3200AC_XXXX |
Psat / P1dB 47.0 / 46.5 (50 / 45) 48.8 / 48.3 (76 / 68) 50.0 / 49.5 (100 / 89)1 |
dBm (W) dBm (W) dBm (W) |
||||||
|
Power Requirements Line Voltage Line Frequency Line Power |
power factor corrected HPAXX3050AC_XXXX HPAXX3075AC_XXXX HPAXX3100AC_XXXX HPAXX3200AC_XXXX |
90 to 265 47 to 63 465 600 710 1 |
VAC Hz W W W |
||||||
|
Transmit Band Filter (Option) |
Insertion Loss |
-0.5 |
dB |
||||||
|
Transmit Band Noise Power Density |
Without optional filter With optional filter |
-50 -120 |
dBm/4 KHz dBm/4 KHz |
||||||
|
KU-BAND |
PARAMETER |
NOTES |
LIMITS |
UNITS |
|||||
|
Frequency Range |
(see options for extended band) |
14.00 to 14.50 |
GHz |
||||||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAKU3050AC_XXXX HPAKU3080AC_XXXX |
Psat / P1dB 47.0 / 46.0 (50 / 40) 1 |
dBm (W) |
||||||
|
Power Requirements Line Voltage Line Frequency Line Power |
power factor corrected HPAKU3050AC_XXXX HPAKU3080AC_XXXX |
90 to 265 47 to 63 665 1 |
VAC Hz W |
||||||
|
Extended Ku-Band 13.75 to 14.50 GHz Sub Ku-Band 1 13.00 to 13.25 GHz Sub Ku-Band 2 12.75 to 13.25 GHz |
De-rate output power by 1.0 dB linearly from 14.00 - 13.75 GHz. Same output power specifications as standard Ku-Band. Same output power specifications as standard Ku-Band. |
|
|||||||
SNG News Trucks, VSAT Systems, Maritime Satcom Systems, Wireless Internet Networks, Military Satcom
