Paradise Datacom Ka-Band 20W & 40W Compact Outdoor SSPA
Ultra Compact, Ka-Band frequencies 30.0 to 31.0 GHz
Ka-Band 20W & 40W Compact Outdoor SSPAs
The Teledyne Paradise Datacom 20 & 40 Watt Ka-Band Compact Outdoor Solid State Power Amplifiers (SSPA) are built for extreme environmental conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry. This allows solid state technology to be used in applications that have long been reserved for TWTAs.
This Ka-Band SSPA weighs in at less than 44 lbs. (20.0 kg), and is only slightly larger than a shoe box.
FEATURES
Compact size and weight
CE Compliance Tested
Integrated forced-air cooling system
Extreme Environmental Testing
RF Output Sample Port
Maintenance Free Operation
Universal, Power Factor Corrected Power Supply
Built-in 1:1 Redundancy Control
Ethernet Interface
RS-485
OPTIONS
Custom Frequency Sub-Bands
Antenna Mounting Kit
Remote Control Panel
L-Band Input
FSK monitor & control via IFL
Phase Combined Systems
Low line voltage operation
Optional side-mount AC input for SNG installations

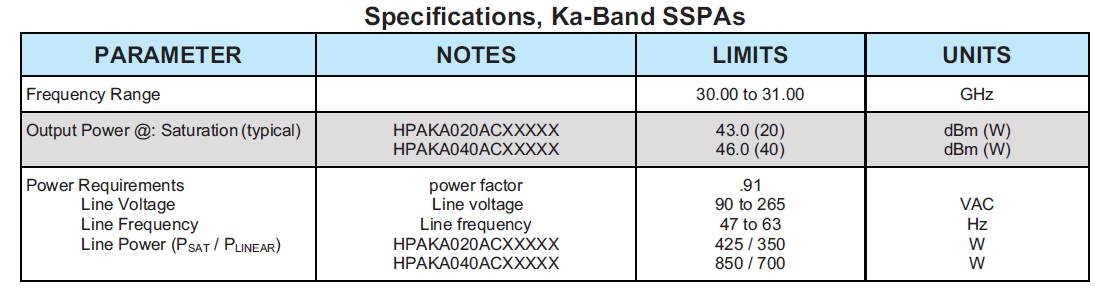

SPECIFICATIONS
Compact Outdoor housing
10.0 X 19.5 X 6.50 in 254 X 495 X 165 mm
44.0 lbs. / 20.0 kg
White powder coat finish
Operating temperature: -40 to +60 °C
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
Frequency Range |
30.00 to 31.00 |
GHz |
|
||
|
Output Power @: Saturation (typical) |
HPAKA020ACXXXXX HPAKA040ACXXXXX |
43.0 (20) 46.0 (40) |
dBm (W) dBm (W) |
||
|
Power Requirements Line Voltage Line Frequency Line Power (PSAT / PLINEAR) |
power factor Line voltage Line frequency HPAKA020ACXXXXX HPAKA040ACXXXXX |
.91 90 to 265 47 to 63 425 / 350 850 / 700 |
VAC Hz W W |
||
Ka-Band SSPA Electrical Specifications
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
Gain w/BUC Gain Flatness Gain Slope Gain Variation vs. Temperature Gain Adjustment |
range full band per 40 MHz -40oC to +60oC 0.1 dB resolution |
40 - 60 ±2.0 ±0.3 ±1.0 20 |
dB dB dB/40 MHz dB dB |
||
|
Single Carrier Spectral Regrowth for QPSK or OQPSK at 1.0x symbol rate |
@ PLINEAR (43 dBm minimum) (44 dBm typical) |
-30 |
dBc |
||
|
AM/PM Conversion |
2.0 |
o/dB |
|
||
|
Spurious Harmonics (SSPA only) |
(@ rated PSAT) (@ rated PSAT -3dB) |
-60 -50 |
dBc dBc |
||
|
Input/Output VSWR (Return Loss) |
(30.0 - 31.0 GHz) |
1.50:1 (13.9) |
(dB) |
||
|
Noise Figure |
at maximum gain |
20 |
dB |
||
|
RX Band Noise Figure |
-147 |
dBm/Hz |
|
||
|
Group Delay (per 40 MHz segment) |
Linear Parabolic Ripple |
0.01 0.003 1.0 |
ns/MHz ns/MHz2 ns p-p |
||
|
Residual AM Noise |
0 - 10 KHz 10 KHz - 500 KHz 500 KHz - 1 MHz |
-45 -20 (1.25 + log F) -80 |
dBc dBc dBc |
||
|
Phase Noise (SSPA only) |
Offset frequency from carrier 10 Hz 100 Hz 1 KHz 10 KHz 100 KHz 1 MHz |
-90 -100 -110 -120 -125 -130 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
||
|
RF Power Detector |
PSAT to (PSAT -20 dBm) |
20 ± 1.0 |
dBm |
||
Ka-Band Broadband Satellite Networks, Military Satellite Communications, WGS Satellite Network Access, Ka-Band VSATs
