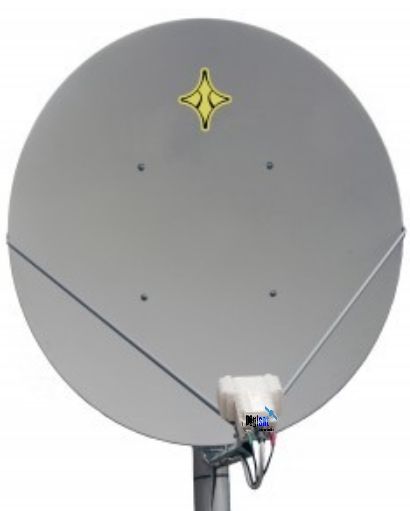

Paradigm Connect 180 (180cm) Ka-Band Inmarsat Global Xpress Terminal
Standard Terminal includes: 180cm Antenna with feed, El/Az Antenna Mount, 5W Transceiver / BUC & LNB, RF Cable (30m), Indoor PIM, Installation Guide, Operators Manual and Tool Kit with Compass
Connect 180 GX Terminal
The Paradigm Connect 180 terminal is the largest of the fixed Global Xpress Certified Solutions. Combining both optimal performance and functionality, the Connect 180 provides access to the most advanced IP satellite services. The terminal is designed to provide the best possible performance on the Global Xpress network.
System Overview
Designed to offer the highest terminal efficiency factor in demanding environments, the Connect 180 offers a variety of features to achieve the required accuracy needed for GX performance. Paradigm offers the Connect 180 as a standard terminal, with relevant accessories. Installation manuals and a quick start guide are also supplied on CD-ROM. For ease of setup, a Pointing Aid is provided. Supplied with either a Kingpost, Non-PenetratingRoof-Mount or the Paradigm ISO Container Mount, the Antenna System can be deployed/installed in any location.
The Indoor PIM can optionally be supplied as a Rack Mount unit. For scenarios where the modem is required to operate outside, Paradigm offers an outdoor PIM option. To increase flexibility and adaptability, Paradigm offers alternative interface options to the standard 10/100BaseT, including fibre and wireless solutions. Cable options to suit specific installation environments can be also offered
Reflector
1.8m Glass Fibre Reinforced Polyester SMX
Optics
One Piece Offset Feed Prime Focus
Feed
Custom Circular (OMT Optional)
Mast Pipe Interface
12.7cm (5.0”) SCH 40 Pipe
14.1cm (5.56”) OD
Mount Geometry
Elevation over Azimuth
Mechanical
Azimuth Adjustment
Fine - 360° Continuous; ±10° Adjustment
Elevation Adjustment
Fine 5° to 90° Continuous
Polarization
RHCP / LHCP, Manual Change
Packaged Weight
100kgs approx.
Performance
Frequency Range (GHz)
GX Compliant
Polarisation
Circular, RH or LH
Data Capabilities
Up to 5Mbps Uplink / 50Mbps Downlink
External Power
100-230V (50-60Hz)
Ingress Protection
PIM IDU - IP52
BUC / LNB - IP65
Radiation pattern Compliance
GX Certified
Environmental
Wind
Operational - 50mph (80km/h)
Survival - 125mph (200km/h)
Ambient Operating Temperature
Antenna -40°C to 70°C
Indoor PIM 0°C to 50°C
Outdoor PIM -25°C to +55°C
Operating Humidity
Indoor PIM 40 to 90% (Condensing)
Outdoor PIM 0 to 95% (Condensing)
Corrosion Protection (Reflector)
Standard Hardware meets 500 Hour Salt Spray Test Requirements (ASTM B-117)
Ordering Information
Connect180 Terminal
Options
Indoor Rack Mount
Outdoor PIM with optional POE and/or DC Power Output
NPRM
Kingpost
High Wind Mount
Quick Deploy Mount
Rugged Deploy Mount
Wall Mount
Paradigm ISO Container Corner Mount
Custom Mounts available on request
Customized & Compatible Fiber & Wireless Solutions available on request
Custom Cable Lengths and Types available on request
Cooling and De-Icing Systems available on request
Installation Tool Kit
Inmarsat GX Satellite services
