Novra Technologies MSR300 Multi‑Input Satellite DVB-S2 Receiver/Router

MSR300 Multi-Input Receiver

The Novra MSR300 is a 1RU platform that supports up to 3 independent DVB-S2 receive modules. Each module is capable of receiving a independent satellite signal, or modules may be combined to receive different transponders from the same satellite. The enhanced feature set of the MSR300 extends your DVB-S2 performance by expanding operation to 32 APSK and down to 100 Ksps; by increasing data throughput to 80 Mbps; and by handling complex multi-stream VCM signals with embedded Input Stream Identifier (ISI) filtering. The MSR300CA is designed for use as a video streaming appliance. It provides a simple, intuitive, graphical interface for program selection and assignment. The MSR300 provides the flexibility to choose which Audio and Teletext PID’s to include with the stream, and will re-generate the PAT to support Single Program Transport Streams (SPTS) or Multi-Program Transport Streams (MPTS).

Applications

The MSR300 series is ideally suited for small-medium enterprise use, delivering IP or MPEG applications that require aggregation and distribution of video-based programming. Typical applications include: IPTV content aggregation (head end) and delivery, hotel or cruise ship infotainment, distance education, digital signage, corporate LAN’s and cable network head-ends.

Features

• DVB-S/DVB-S2 Complaint
• Multi-stream VCM Operation with ISI Filtering
• Full Transponder Program Listing - 32 APSK Operation
• User-Friendly Program-Based Conguration

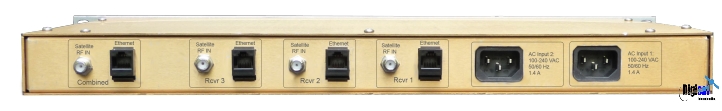

• Up to 3 DVB-S/DVB-S2 inputs
• Selectable Audio or Teletext PID Pass-through

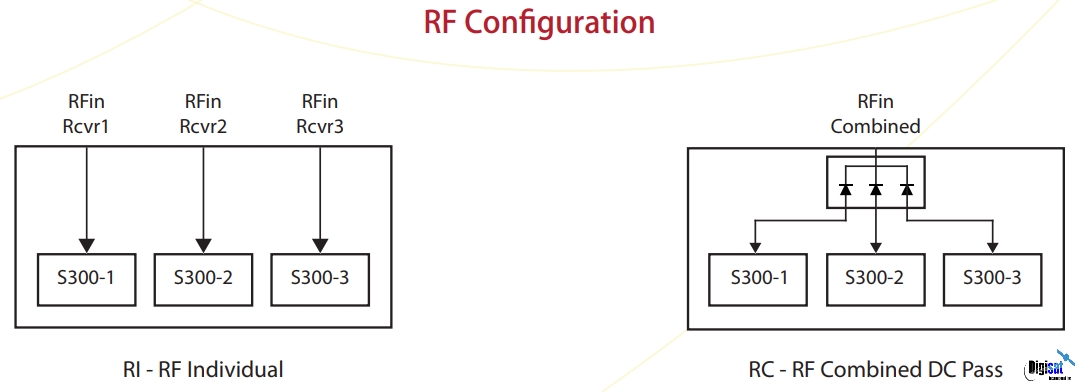

• Option to Combine the Satellite Inputs
• Selectable SI Table PID Pass-through
• Individual 100 BaseT Ethernet Outputs
• Single Program PAT Re-generation
• Optional Combined GigE Ethernet Output
• SPTS/MPTS
• Single or Redundant Power Supply
• CMCS Network Mgmt Tool
