Norsat Intl. Rover Lite Ultra-Portable Satellite Terminal Ku-Band is available to buy in increments of 1

Airplane transportable, ultra-fast assembly without tools, remote communications ready, simple operation

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Rover Lite Ultra-Compact Satcom Terminal

The Norsat Rover Lite is easily Man-Portable and helicopter transportable which make this terminal ideal for remote communications where extremely lightweight equipment is required. The Express terminal provides easy field deployment without any hand tools.

This Norsat Flyaway VSAT terminal comes complete with a 40 watt SSPA and integrated DMD1050 modem. Higher transmit power options are available as an optional feature. All Rover flyaway terminals feature rugged electronics that are designed to withstand harsh conditions while delivering exceptional RF performance.

1.2M w/40W Ku BUC P/N: ROL120KUE0400-U

Flexibility

The Rover Lite series is a highly integrated system that has been fine tuned for Streambox or other IP based video streaming systems. This system offers a complete solution including a compact, segmented antenna system, 40W SSPA, integrated DMD-1050 modem, comprehensive alignment tools, and a MOLLE frame backpack.

Assisted Acquisition

The terminal is equipped with the LinkControl software which simplifies the antenna alignment process with it's alignment wizard, beacon detector and built-in spectrum analyzer. Operators are provided with a full suite of alignment tools, including a compass, inclinometer, and user-friendly Windows or Mac-based GUI with Assisted Acquire and GPS. The Express VSAT system provides a simple setup and alignment procedure that allows operators with minimal training to quickly establish transmission.

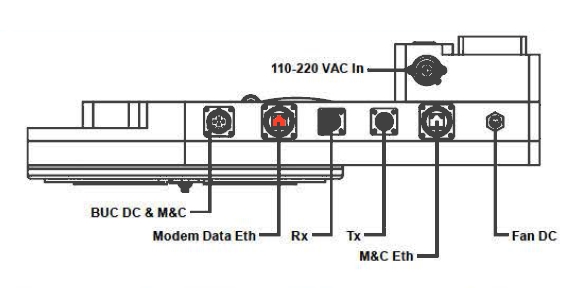

Rover Express RF Interface diagram

Technical Specifications

X-Band Military System
TX EIRP	51.0 dBW
RX G/T	14.60 dB/K
Antenna	1M Carbon Fibre, Six Segments, Parabolic Offset, 0.8 F/D
Tripod	Elevation over Azimuth
Antenna Travel Azimuth Elevation Polarization	+/-180° continuous fine adjust (360° coarse adjustment) 10 - 80° of reflector bore sight +/- 90°
Pointing tools	Onboard Portable Spectrum Analyzer, Received Signal Strength Indicator, DVB Receiver, Compass, Inclinometer, GPS, Norsat proprietary LinkControl with Satellite Almanac, Antenna Alignment Wizard
Ku-Band System
TX EIRP	56.0 dBW
RX G/T	19.60 dB/K
Antenna	1m Carbon Fiber, Six Segments, Parabolic Offset Single, 0.8 F/D
Tripod	Elevation / Azimuth
Antenna Travel Azimuth Elevation Polarization	+/-180° continuous fine adjust (360° coarse) 10 - 80° of reflector bore sight +/- 90°
Pointing tools	Onboard Spectrum Analyzer, Received Signal Strength Indicator, DVB Receiver, Compass, Inclinometer, GPS, Norsat proprietary LinkControl with Satellite Almanac, Antenna Alignment Wizard
X-Band VSAT Antenna System
Frequency Rx Tx	7.250 - 7.750 GHz 7.90 - 8.40 GHz
Midband Gain Rx Tx	36.00 dBi 36.50 dBi
Axial Ratio Rx Tx	<1.50 dB <1.0 dB
Ku-Band Antenna System
Frequency Rx Tx	10.70 - 12.75 GHz 13.75 - 14.5 GHz
Midband Gain Rx Tx	39.8 dBi 41.3 dBi
Cross-Pol Isolation	35 dB within 0.3° of Bore Site
Transmit Specs
Output Frequency X-Band Ku-Band	7.9-8.4 GHz 13.75-14.5 GHz
Reference	10 MHz
Reference Level	0 +/- 5 dBm
Output Power @ P1dB	40 W (other SSPA options available)
Gain (typical)	75 dB
Spectral Regrowth	-26 dBc @ 46 dBm
Receive Specs
LNB NF	0.80
Reference	10 MHz
Reference Level	+2 +/- 5 dBm
Phase Noise (X-Band)	-75 dBc/Hz @ 1 kHz -85 dBc/Hz @ 10 kHz -95 dBc/Hz at 100 kHz
Phase Noise (Ku-Band)	-65 dBc/Hz @ 1 kHz -75 dBc/Hz @ 10 kHz -85 dBc/Hz at 100 kHz
Input VSWR X-Band Ku-Band	2.0 : 1 2.2 : 1
Output VSWR X-Band Ku-Band	1.5 : 1 2.2 : 1
Conversion Gain (Typ.) X-Band Ku-Band	55 dBm 65 dBm
Output P1 dB X-Band Ku-Band	5 dBm 7 dBm
Power Req	15 - 24 V on IF cable
Current Drain X-Band Ku-Band	300 mA 200 mA
Modem
Modem	Integrated DMD 1050
Data Rate	2.4kbps to 5.0 Mbps 10Mbps (option) 20Mbps (option)
Modulation	BPSK, QPSK (8PSK option)
FEC	Viterbi 1/2, 3/4, 7/8 TPC 1/2, 3/4, 7/8
Interace	Ethernet 10/100 Base T MIL STD 188 114A (option)
Packaging
System Weight	31.0 kg
Case 1	30.0 kg
Case 2	25.0 kg
Case Dimensions	65 cm x 48 cm x 40 cm
