Norsat LNA-9000CS Ka-Band LNA (20.20 - 21.20 GHz) SMA Output
Rx Frequency: 20.20-21.20 GHz, Noise figure 1.5 dB @ 23°C, Input VSWR 2.0:1, SMA

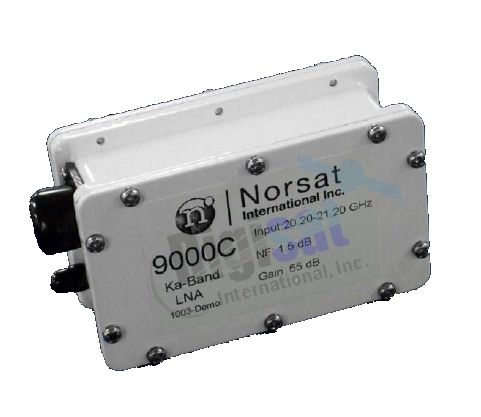

LNA-9000CS Ka-Band Low Noise Amplifier
The Norsat LNA-9000CS series Ka-Band LNA offers highly stable reception of Ka satellite frequencies from 20.20 - 21.20 GHz. This unit is configured with a SMA RF output connector.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
The LNA 9000 Ka-Band LNA is ideal for applications such as:
Fixed Earth Station Antennas
Mobile Terminals
High stability systems
Unmanned ISR (intelligence, surveillance and reconnaissance)

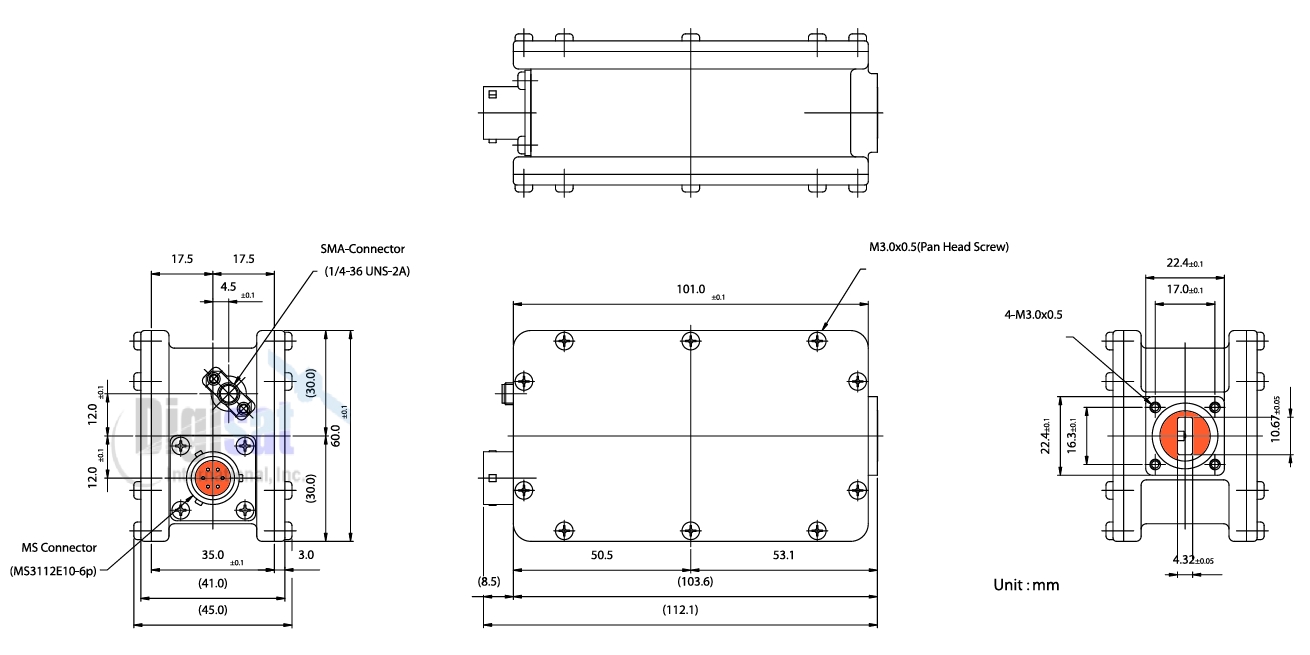

LNA Outline Dimensions
LNA-9000CS Specifications
SMA Connector RF Output
Frequency 20.20 to 21.20 GHz
Noise figure 1.5 dB
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Output P1dB 8 dBm
Dimensions 116 (L) x 49 (W) x 40 (H) mm
Weight 300 g
Input Waveguide WR-42
DC Power MS3112E10-6P
Gain 55 dB
Gain flatness 4 dB p - p max
Power requirements +15 to +24 V
Current drain 150 mA
Temperature range -40°C to +60°C

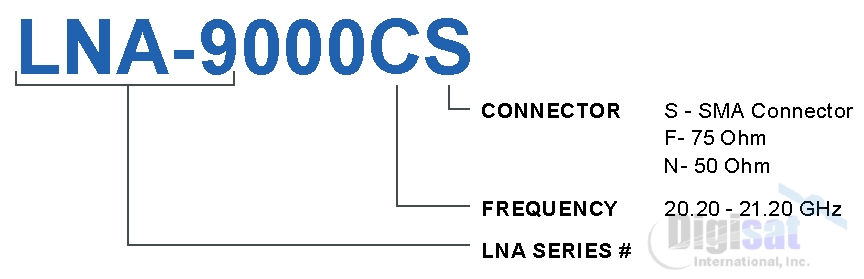

How to Order
The LNA-9000CS series LNA offers Standard and Extended Ka-Band frequencies from 20.20 - 21.20 GHz. Special custom order units are available from Digisat.
