Norsat LNA-9000CF Ka-Band LNA (20.20 - 21.20 GHz) F-Connector Output
Rx Frequency: 20.20-21.20 GHz, Noise figure 1.5 dB @ 23°C, Input VSWR 2.0:1, F-connector

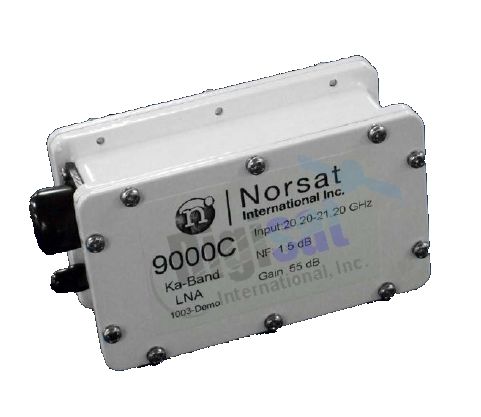

LNA-9000CF Ka-Band Low Noise Amplifier
The Norsat LNA-9000CF series Ka-Band LNA offers highly stable reception of Ka satellite frequencies from 20.20 - 21.20 GHz. This unit is configured with an "F" type RF output connector.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
The LNA 9000 Ka-Band LNA is ideal for applications such as:
Fixed Earth Station Antennas
Mobile Terminals
High stability systems
Unmanned ISR (intelligence, surveillance and reconnaissance)
LNA Outline Dimensions
9000 Series Specifications
"F" Connector RF Output
Frequency 20.20 to 21.20 GHz
Noise figure 1.5 dB
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Output P1dB 8 dBm
Dimensions 116 (L) x 49 (W) x 40 (H) mm
Weight 300 g
Input Waveguide WR-42
DC Power MS3112E10-6P
Gain 55 dB
Gain flatness 4 dB p - p max
Power requirements +15 to +24 V
Current drain 150 mA
Temperature range -40°C to +60°C
How to Order
The LNA-9000CF series LNA offers Standard and Extended Ka-Band frequencies from 20.20 - 21.20 GHz. Special custom order units are available from Digisat.
