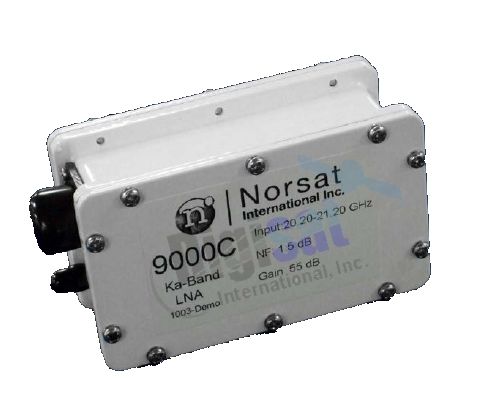

Norsat LNA-9000 Ka-Band LNA (20.20 - 21.20 GHz) 9000 Series Low Noise Amplifier
Rx Frequency: 20.20-21.20 GHz, Noise figure 1.5 dB @ 23°C, Input VSWR 2.0:1
LNA-9000 Series Ka-Band Low Noise Amplifier
The Norsat LNA-9000 series Ka-Band LNAs offer highly stable reception of Ka satellite frequencies from 20.20 - 21.20 GHz. Special configurations are available for order including type-N, SMA and "F" RF output connectors.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
The LNA 9000 Ka-Band LNA is ideal for applications such as:
Fixed Earth Station Antennas
Mobile Terminals
High stability systems
Unmanned ISR (intelligence, surveillance and reconnaissance)
LNA Outline Dimensions
9000 Series Specifications
Frequency 20.20 to 21.20 GHz
Noise figure 1.5 dB
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Output P1dB 8 dBm
Dimensions 116 (L) x 49 (W) x 40 (H) mm
Weight 300 g
Input Waveguide WR-42
DC Power MS3112E10-6P
Gain 55 dB
Gain flatness 4 dB p - p max
Power requirements +15 to +24 V
Current drain 150 mA
Temperature range -40°C to +60°C
How to Order
The 9000 series LNAs offer Standard and Extended Ka-Band frequencies from 20.20 - 21.20 GHz. Special custom order units are available from Digisat.
