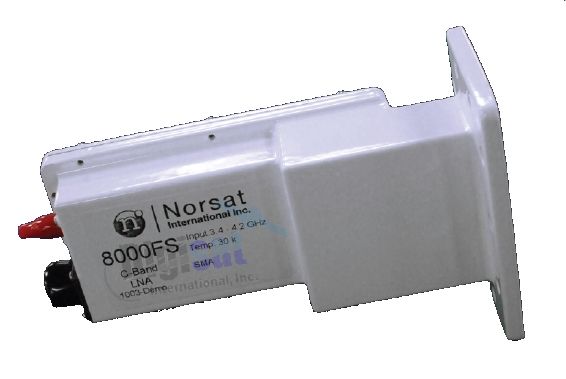

Norsat LNA-8000 C-Band LNA (3.4 - 4.2 GHz) 8000 Series
Rx Frequency: 3.40 - 4.20 GHz, Noise Temperature 30 k @ 23°C, Input Waveguide CPR-229G
LNA-8000 Series Ku-Band Low Noise Amplifier
The Norsat LNA-8000 series C-Band LNAs offer Standard and Extended C-Band frequencies from 3.40 - 4.20 GHz. Special configurations are available for order including type-N and SMA RF input connectors with power via a separate DC connector or via RF input.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
Norsat C-Band LNAs are ideal for applications such as:
Fixed Earth Station Antennas
Mobile Terminals
High stability systems
Unmanned ISR (intelligence, surveillance and reconnaissance)

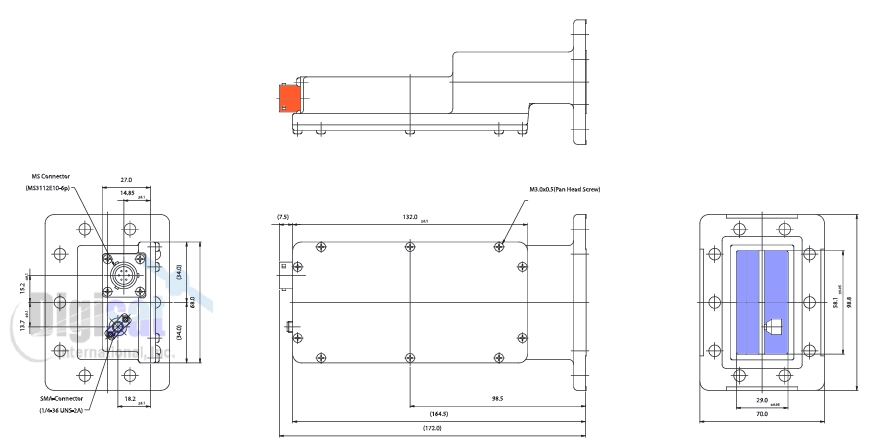

Outline Dimensions
Specifications
Frequency Available 3.4 to 4.2 GHz
Noise Temperature 30 k @ 23°C
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Output P1dB +5 dBm
Dimensions 180 (L) x 100 (W) x 70 (H) mm
Weight 425 g
Input Waveguide CPR-229G
DC Power MS3112E10-6P or SMA, or N
Gain 50 dB
Gain flatness 4 dB p - p max
Voltage requirements +15 to +24 VDC
Current drain 100 mA
Temperature range -40°C to +60°C

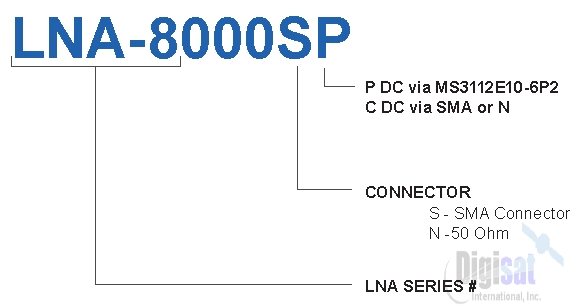

How to Order
The 8000 series LNAs offer Standard and Extended C-Band frequencies from 3.4 - 4.2 GHz. Special custom order units are available from Digisat.
