SKU
NST-CFK-4200
Norsat CFK-4200 Emergency Communications Kit with Sat-Phone and BGAN is available to buy in increments of 1

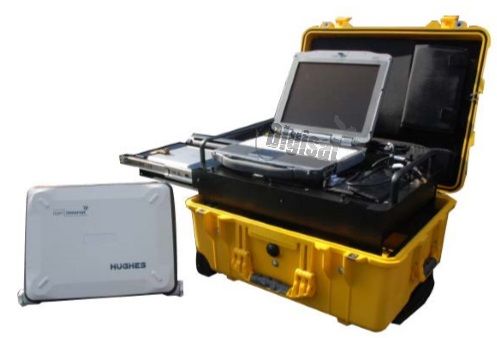

CFK-4200 Emergency Communications Kit

The Norsat CFK-4200 Emergency Communications Kit gives first responders the capability to connect to remote resources while in the field under adverse circumstances. To maximize flexibility, the system provides users with the ability to establish reliable communicaitons via three methods: BGAN satellite, satellite phone, or a cellular data network (EV-DO or UMTS). The Emergency Communications Kit also acts as a mobile office with an integrated scanner, printer, HD webcam, and rugged laptop. With the key components already connected, setup of the system is easy. The CFK-4200V is an enhanced multimedia version of the kit. It adds a video camera, video editing software, support accessories, and an additional transit case.

Key features

The Norsat CFK kits are high performance integrated fly-away kits packaged in two airline carry-on cases, these kits provide secure and non-secure communications via an ethernet connection. Key features include:

  • Ruggedized Laptop
  • BGAN Satellite terminal
  • Wireless cellular data modem
  • Integrated printer and scanner
  • Compact Pelican case
  • High Definition USB webcam
  • Diverse powering: AC or DC
  • 4200V variant adds support for video capture and editing
Norsat CFK-4200 Emergency Comms Kit Network Connectivity Diagram

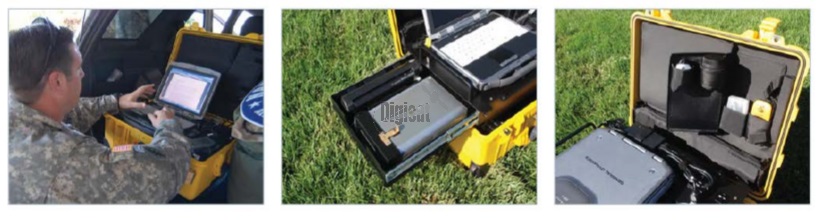

Norsat CFK-4200 Emergency Satcom Kit Deployed

Included Accessories

  • 7 Port USB Hub
  • 2.0 Megapixel webcam
  • USB Mouse
  • USB-Powered light
  • VoIP Software

Sat Phone options

  • Globalstar
  • Iridium
  • Thuraya
  • Inmarsat

Detailed specifications

  • Dimensions: 22’’L x18’’W x 10.5’’ H
  • Weight: 57 lbs
  • Power input:100-130 wwVAC 60Hz, 11-32 VDC
  • Operating temperature: 32° to 149° F (-20° to 65° C)
  • Storage Temperature: 4° to 149° F (-20° to 65° C)
  • Humidity: 5 to 95%, non- condensing 4200V Audio/video option
  • Firewire hub
  • Video encoder and audio codec
  • Video camera and video editing software
  • Microphone and headphones
  • Additional transit case

Provides first responders the capability to connect to remote resources while in the field under adverse circumstances.
