Norsat CFK-100E Flyaway Communications Kit for Voice, Video and Data

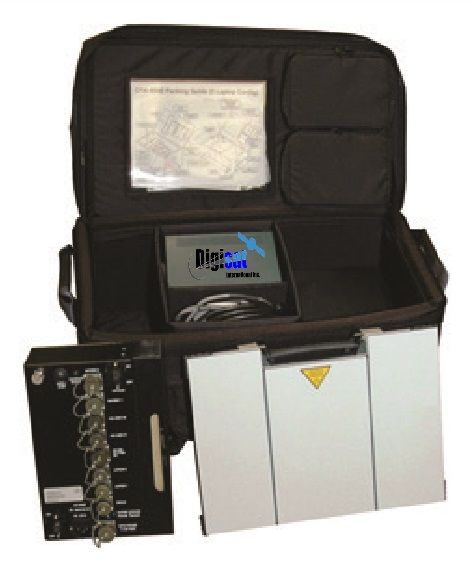

CFK-100E Compact Flyaway Kit
The Norsat CFK-100E is an integrated flyaway kit supporting simultaneous voice, video and data communications over classified (red) and unclassified (black) networks from anywhere via two removable Cisco ASA5505 security appliances for red/black separation and an Explorer 700 BGAN satellite terminal. The kit is packed in two airline carryon backpack cases and hard cases and includes a HD 720p webcam and headset for remote video conferencing. The integrated Power Supply and SMART UPS can be powered via AC, DC or standard BB-2590 or UBI-2590 batteries (UBI-2590 batteries required for supported charge functionality) and powers various network encryption devices including KG250, KG175D or Talon Type 1 Encryption PCMCIA card. For legacy secure networks, a STE phone (not included) an be connected using KlasHopper PCMCIA card.
The CFK-100E (Compact Flyaway Kit) supports simultaneous voice, video and data communications over classified and unclassified networks. Packaged in two airline carry-on cases, the kit includes an HD webcam and headset for remote video conferencing. The integrated power supply and SMART UPS can be powered via AC, DC or standard BB-2590 or UBI-2590 batteries.
The Norsat CFK kits are high performance integrated fly-away kits packaged in two airline carry-on cases. These kits provide secure and non-secure communications via Ethernet connection.
Key features
- Thrane & Thrane Explorer 700 BGAN
- Custom OEM rigid backpacks with nylon covered foam insets to reduce weight
- Hard cases with handles and wheels for easy storage and transport
- Storage and integrated power for (2) Cisco ASA-5505, KG250/ KG175D/STE, up to (2) Panasonic CF-19 Rugged laptops, E700 BGAN, (2) UBI-2590 batteries and accessories
- SMART UPS with battery back up using (2) UBI-2590 batteries included
- Power-Over-Ethernet for VoIP Support (2 ports per ASA5505)
- 8 Red plus 7 Black LAN Fast Ethernet RJ45 Data User Ports
- USB hub, scanner, smart card reader, USB microphone/ headset, Microsoft LifeCam HD-6000 720p HD webcam
- 802.3af Power-Over-Ethernet for VoIP Support
Interfaces
Detailed Specifications
- Dimensions: Exterior - 25.00’’ x 19.43’’ x 8.68’’
- Weight: < 48lbs AC Power Input: 90-264 VAC, 47-63 Hz, < 150W
- Operating temperature: -10°C to 55°C (low temp modem dependent)
- Storage Temperature: -32°C to 60°C (battery limited, +70°C excluding batteries)
- Humidity: 95%, Non-Condensing
- UPS Battery Backup: > 3 Hours
Exterior Interface Panel
- Three configurable Ethernet ports
- Two Cellular Antenna SMA Connectors
- One BGAN Antenna TNC Connector
- One AC Input Connector
- One Ground Lug (1/4”-20)
- One Power Switch with integrate LE
These kits provide secure and non-secure communications via Ethernet connection.
