Norsat 9500HD-4 High Stability Ka-Band PLL LNB (21.2 - 22.2 GHz) ±50 kHz F or N-Type
Login To See Price
SKU
NST-9500HD-4
Norsat 9500HD-4 High Stability Ka-Band PLL LNB (21.2 - 22.2 GHz) ±50 kHz F or N-Type is available to buy in increments of 1
- Premium RF performance
- Extreme reliability
- Small form factor
- 3 year warranty
9500HD-4 High Stability Ka-Band PLL LNB

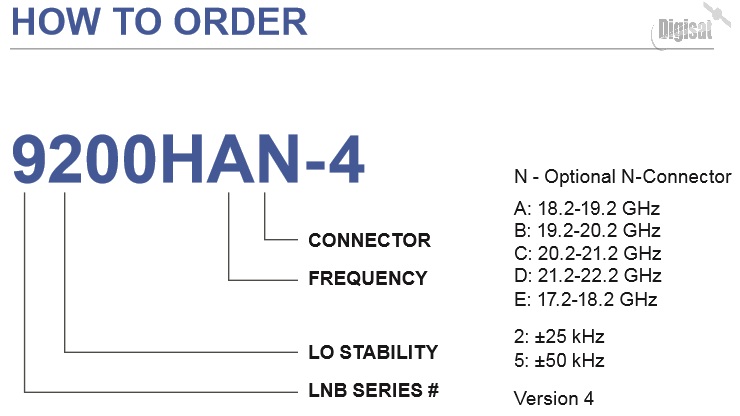

Norsat 9500HD-4 High Stability Ka-band PLL LNB features ultra-high LO stability allowing users to reliably receive a narrower band transmission signals from Ka satellite networks. The 9500HD-4 series input freq. is 21.2 to 22.2 GHz, L.O.: 20.25 GHz, L-band IF: 950 to 1950. Additional frequencies are available in five separate sub-bands:
.
L.O. Stability: ±50 kHz
Input: (waterproof) WR-42 waveguide
Output: (waterproof) F-connector (75 ohm), N (Optional) (50 ohm)
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 50 kHz |
| Noise Figure | 1.6 dB |
| Input Frequency - Band 1 | Ka-Band: 21.20 - 22.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
RF |
|
| LO Frequency 1 | 20.25 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Output P1dB compression point | 5 dBm |
ELECTRICAL |
|
| Power Requirements | 12 - 24 V |
| Current Drain | 400 mA |
INTERFACE |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
M & C |
|
| LED Indicators | None |
ENVIRONMENTAL |
|
| Temperature - Operational | -30 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL |
|

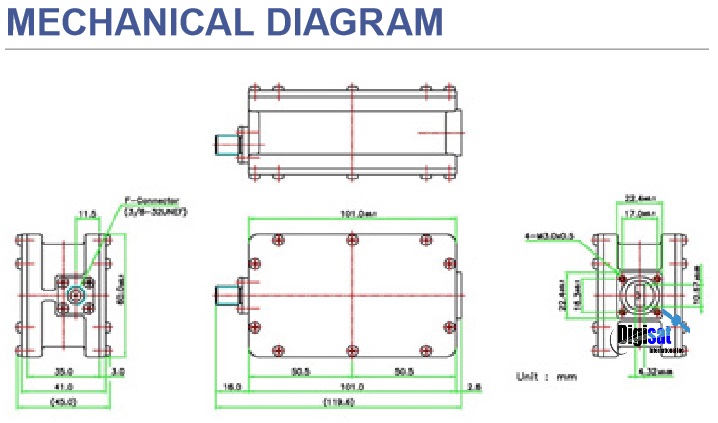

| Dimensions (L x W x H) | 118 x 60 x 45 mm |
| Weight | 450 g |
Internet service, TVRO, IP data. Use on all fixed earth stations, flyaway VSATs, Maritime
