Norsat 9200HT-3N Triple Ka-Band (17.3-20.2 GHz) PLL LNB Type-N ±25 kHz
$5,544.00
SKU
NST-9200HT-3N
Norsat 9200HT-3N Triple Ka-Band (17.3-20.2 GHz) PLL LNB Type-N ±25 kHz is available to buy in increments of 1
Triple Ka (17.35-20.2 GHz) PLL, Type-N 50 Ohm, Stability: ±25 kHz
9200HT-3N Triple-Band Ka PLL LNB
The Norsat 9200HT-3N Triple Ka-Band PLL LNB offers superior LO stability and gain flatness allowing users to reliably receive a narrower band transmission from Ka satellite networks. The broad frequency 9200HT-3N series LNB input frequency ranges from 17.35 to 20.2 GHz in three sub-bands, LO Band-1: 16.35, Band-2: 17.35 GHz, Band-3: 18.35 GHz, Stability ±25kHz, Input WR-42 waveguide, Output Type-N connector (50 ohm), 60 dB gain., IF Frequency: 950 to 1950.

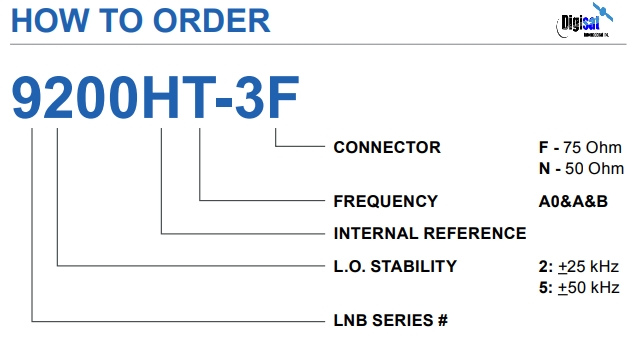

Ordering Guide

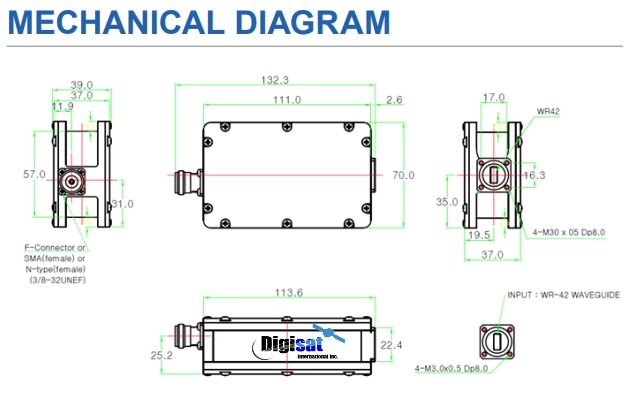

Outline Dimension Drawing
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | PLL |
| # of onboard LOs | Triple-band |
| LO Stability | +/- 25 kHz |
| Noise Figure | 1.5 dB |

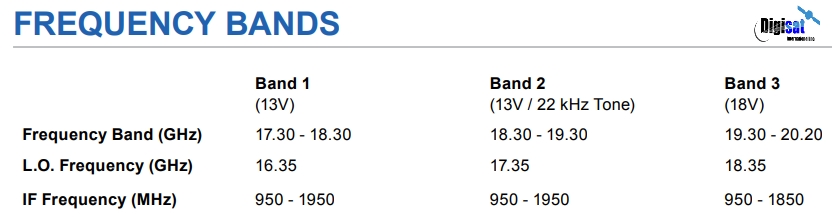

| Input Frequency - Band 1 | Ka-Band: 17.30 - 18.30 GHz |
| Input Frequency - Band 2 | Ka-Band: 18.30 - 19.30 GHz |
| Input Frequency - Band 3 | Ka-Band: 19.30 - 20.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1850 MHz |
RF |
|
| LO Frequency 1 | 16.35 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Control Signal 3 | 13V + 22 KHz tone |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 58 dBm min |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| Output P1dB compression point | 5 dBm |
| Image Rejection | 40 dBc min |
ELECTRICAL |
|
| Current Drain | 350 mA |
INTERFACE |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
M&C |
|
| LED Indicators | None |
ENVIRONMENTAL |
|
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL |
|
| Dimensions (L x W x H) | 133 x 70 x 39 mm |
| Weight | 500 g |
Triple-Band operation. Use on all commercial and government Ka ground stations including VSAT, Fixed Earth Stations, Mobile and Maritime terminals.
