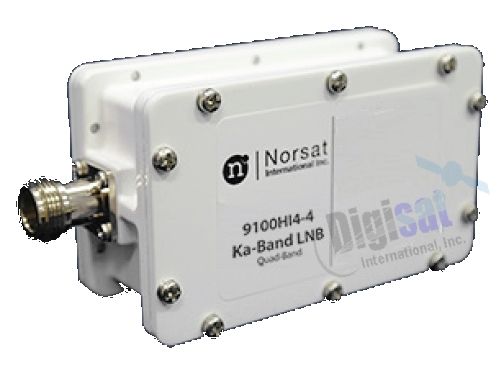

Norsat 9100HI4ECF-4 Ka-Band 4 Band PLL LNB F-connector
9100HI4ECF-4 Ka-Band PLL LNB
The Norsat 9100HI4ECF-4 Ka-band PLL LNBs offer four separate sub bands for the utmost in frequency flexibility with improved LO stability allowing users to reliably receive a narrower band transmission from Ka satellite networks. The 9100HI4ECF series is available in frequencies ranging from 17.2 to 21.2 GHz, in five sub-bands:
Outline Dimensions

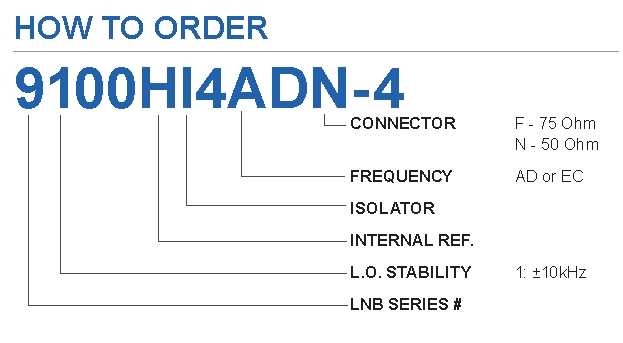

Ordering Info
Input: (waterproof) WR-42 waveguide
Output: F-connector (75 ohm)
Noise Figure (@ +25˚C) 2.0 dB max.
L.O. Stability (@ over temp.) +/- 10 KHz
Conversion Gain 58 to 65 dB
Gain Flatness (each band) 4 dBp-p max.
Phase Noise -63 dBc/Hz (@ 100 Hz) -73 dBc/Hz (@ 1 kHz) -80 dBc/Hz (@ 10 kHz) -95 dBc/Hz (@ 100 kHz)
Input VSWR 1.3 : 1 max.
Output VSWR 2.0 : 1 max.
Image Rejection 40 dBc @ band 1 25 dBc @ band 2 0 dBc min. @ other bands
Military, Newsgathering and remote communications where highly flexible frequency changes are required.
