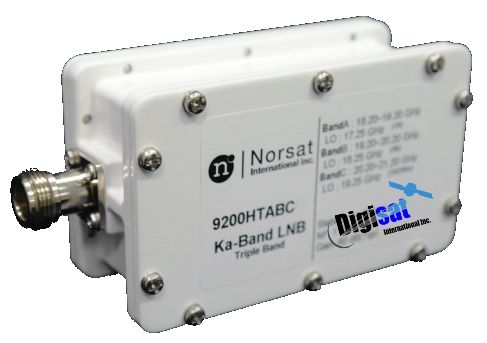

Norsat 9000XTBCDN-4 Triple Ka-Band (19.2-22.2 GHz) EXT REF LNB Type-N
$2,805.00
SKU
NST-9000XTBCDN-4
Norsat 9000XTBCDN-4 Triple Ka-Band (19.2-22.2 GHz) EXT REF LNB Type-N is available to buy in increments of 1
Triple Ka (19.20-22.20 GHz) Externally Referenced, Type-N 50 Ohm
9000XTBCDN-4 Triple-Band Ka EXT REF
The Norsat 9000XTBCDN-4 Triple Ka-Band Externally Referenced LNB offers superior gain flatness allowing users to reliably receive a narrower band transmission from Ka satellite networks. The highly versatile 9000XTBCDN-4 series LNB input frequency ranges from 19.20 to 22.20 GHz in three sub-bands, LO Band-1: 18.25, Band-2: 19.25 GHz, Band-3: 20.25 GHz, Stability: Phase Locked to External Reference, Input WR-42 waveguide, Output Type-N connector (50 ohm), 60 dB gain., IF Frequency: 950 to 1950.

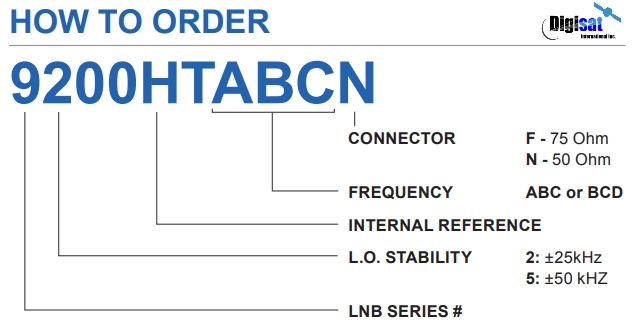

Ordering Guide

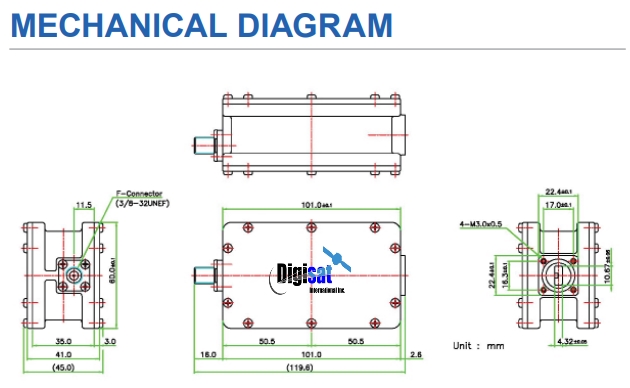

Outline Dimension Drawing
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Triple-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 1.6 - 1.8 dB |

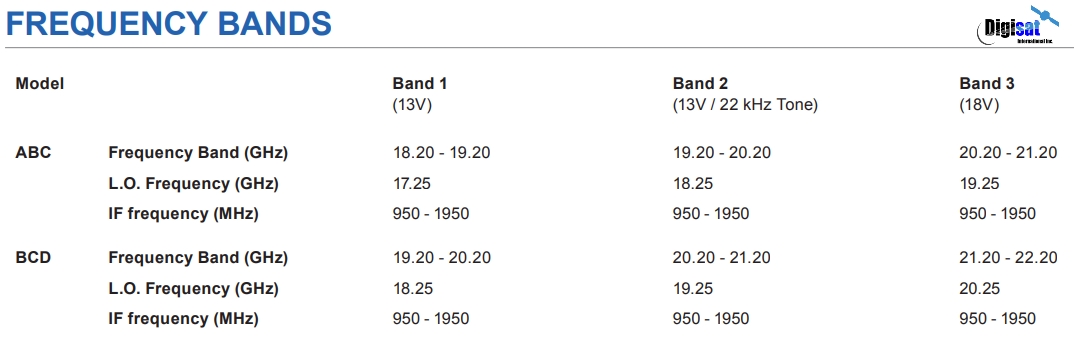

| Input Frequency - Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Input Frequency - Band 2 | Ka-Band: 20.20 - 21.20 GHz |
| Input Frequency - Band 3 | Ka-Band: 21.20 - 22.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1950 MHz |
RF |
|
| LO Frequency 1 | 18.25 GHz |
| LO Frequency 2 | 19.25 GHz |
| LO Frequency 3 | 20.25 GHz |
| Control Signal 1 | 13V |
| Control Signal 2 | 13V + 22 KHz tone |
| Control Signal 3 | 18V |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | |
| Phase Noise @ 100KHz offset | |
| Conversion Gain | 60 dBm min |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| Output P1dB compression point | 5 dBm |
| Image Rejection | 40 dBc min |
ELECTRICAL |
|
| Current Drain | 350 mA |
INTERFACE |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | Type-N 50 Ohm |
M&C |
|
| LED Indicators | None |
ENVIRONMENTAL |
|
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL |
|
| Dimensions (L x W x H) | 120 x 50 x 45 mm |
| Weight | 400 g |
Triple-Band operation. Use on all commercial and government Ka ground stations including VSAT, Fixed Earth Stations, Mobile and Maritime terminals.
