Norsat 9000XTABCF Triple Ka-Band (18.2-21.2 GHz) EXT REF LNB F-Type

Norsat 9500HTBCDN-4 Triple Ka-Band (19.2-22.2 GHz) PLL LNB Type-N ±50 kHz

Norsat 9000XTABCN Triple Ka-Band (18.2-21.2 GHz) EXT REF LNB Type-N

Be the first to review this product

$2,794.00

SKU

NST-9000XTABCF

Norsat 9000XTABCF Triple Ka-Band (18.2-21.2 GHz) EXT REF LNB F-Type is available to buy in increments of 1

Triple Ka (18.20-21.20 GHz) Externally Referenced, F-Type 75 Ohm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000XTABCF Triple-Band Ka EXT REF

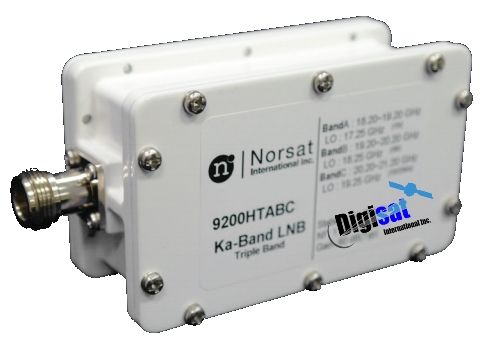

The Norsat 9000XTABCF Triple Ka-Band Externally Referenced LNB offers superior gain flatness allowing users to reliably receive a narrower band transmission from Ka satellite networks. The highly versatile 9000XTABCF series LNB input frequency ranges from 18.20 to 21.20 GHz in three sub-bands, LO Band-1: 17.25, Band-2: 18.25 GHz, Band-3: 19.25 GHz, Stability: Phase Locked to External Reference, Input WR-42 waveguide, Output F-Type connector (75 ohm), 60 dB gain., IF Frequency: 950 to 1950.

Norsat 9000XTABCF Frequency Bands

Ordering Guide

Norsat 9000XTABCF LNB Ordering Information

Outline Dimension Drawing

Norsat 9000XTABCF Mechanical Drawing

Technical Specifications

KEY SPECIFICATIONS
Product Family	9000 Series
Band	Ka-Band
LO Type	External
# of onboard LOs	Triple-band
LO Stability	Phase Locked to External Reference
Noise Figure	1.6 - 1.8 dB
Input Frequency - Band 1	Ka-Band: 18.20 - 19.20 GHz
Input Frequency - Band 2	Ka-Band: 19.20 - 20.20 GHz
Input Frequency - Band 3	Ka-Band: 20.20 - 21.20 GHz
Output Frequency 1	L-Band: 950 - 1950 MHz
Output Frequency 2	L-Band: 950 - 1950 MHz
Output Frequency 3	L-Band: 950 - 1950 MHz
RF
LO Frequency 1	17.25 GHz
LO Frequency 2	18.25 GHz
LO Frequency 3	19.25 GHz
Control Signal 1	13V
Control Signal 2	13V + 22 KHz tone
Control Signal 3	18V
Phase Noise @ 1KHz offset	Depends on External Reference
Phase Noise @ 10KHz offset
Phase Noise @ 100KHz offset
Conversion Gain	60 dBm min
Gain Variation over operating band	4.0 dB p-p
Input VSWR	2.5 : 1
Output VSWR	2.5 : 1
Spurious	-60 dBc (in band) ; -50 dBc (out of band)
Output P1dB compression point	5 dBm
Image Rejection	40 dBc min
ELECTRICAL
Current Drain	350 mA
INTERFACE
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	F-Type 75 Ohm
M&C
LED Indicators	None
ENVIRONMENTAL
Temperature - Operational	-40 to +60°C
Humidity	0 - 95%
PHYSICAL
Dimensions (L x W x H)	120 x 50 x 45 mm
Weight	400 g
