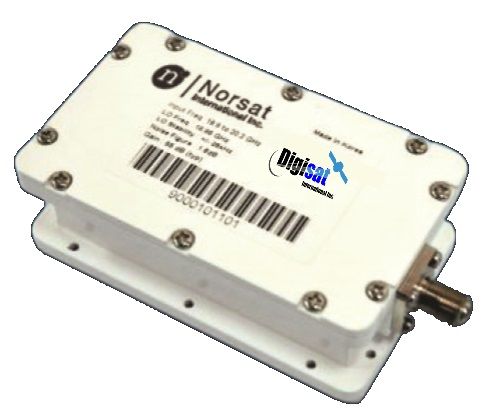

Norsat 9000XT-3N Ka Triple Band Ext Ref LNB (17.3 - 20.2 GHz) N-Type
$5,544.00
SKU
NST-9000XT-3N
Norsat 9000XT-3N Ka Triple Band Ext Ref LNB (17.3 - 20.2 GHz) N-Type is available to buy in increments of 1
NORSAT 9000XT-3N KA TRIPLE-BAND EXT REF LNB N-TYPE
- Noise Figure: 2.0 dB max
- Frequencies (GHz): 17.30-18.30/18.30-19.30/19.30-20.20 GHz
- L.O. Freqs (GHz): 16.35/17.35/18.35 GHz
- L.O. Stability: ±50 kHz
- Conv. Gain: 58 dB (min)
- Output Connector: N-Type female (50 ohm)
- Waveguide Flange: WR-42
- Noise figure 2.0 dB max
- L.O. stability Phase locked to ext. ref.
- Phase noise (SSB) max -70 dBc/Hz at 1kHz -80 dBc/Hz at 10kHz -90 dBc/Hz at 100 kHz
- Input VSWR 2.5 : 1
- Output VSWR 2.2 : 1
- Conversion gain 58 dB (min)
- Gain flatness over 1000 MHz 4 dB p-p
- Output P1dB 5 dBm
- Image rejection 40 dBc min for band A0 30 dBc for band A 0 dBc for band B
- DC power A0-band 13 V A-band 18 V B-band 13 V + 22 KHz tone
- DC current 350 mA (11 - 24V)
- Waveguide Flange WR-42
- Output connector N:50 Ω, F: 75 Ω
- Spurious In band -60 dBc @ -10dBm Out band -50 dBc @ -10dBm
- Dimensions 114(L) x 70(W) x 39(H) mm
- Weight 500 g
- Operating Temperature -40 to + 60°C
Ka-Band satellite service reception, Commercial TVRO, Broadband VSAT Services, IP Multicasting receive
