Norsat 9000XIS Ka-Band Isolator ISO LNB (20.20 - 21.20 GHz) SMA Output
9000XIS Ka-Band ISO LNB

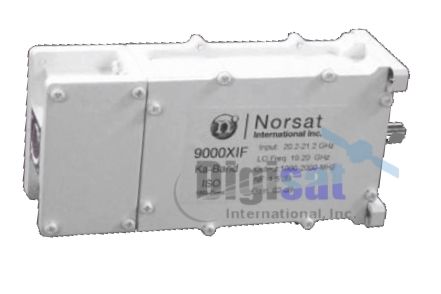

The Norsat 9000XIS Ka-Band Isolator Low Noise Block Down Converter (LNB) delivers excellent RF performance over Ka-Band satellite frequencies ranging from 20.20 - 21.20 GHz. With its integral isolator the 9000XIS LNB features an extremely stable local oscillator that's Phase locked to External Reference. L-Band IF output is from 1000 - 2000 MHz and is provided via a precision SMA female connector. RF frequency input is a WR42 grooved waveguide flange.
LNB Part Numbers
Type N: 9000XIN
SMA: 9000XIS
F-Connector: 9000XIF
Local oscillator frequency: 19.20 GHz
Noise Figure: 1.7 dB @ 23°C
Norsat 9000XIS LNB Ordering Information
Noise figure 1.7 dB @ 23°C
L.O. stability Phase locked to External Reference
Phase noise (SSB) max -62 dBc/Hz at 100Hz
-72 dBc/Hz at 1kHz
-82 dBc/Hz at 10kHz
-92 dBc/Hz at 100kHz
-102 dBc/Hz at 1MHz
Input VSWR 1.3 : 1
Output VSWR 1.8 : 1
Typical service 9000XI
Input frequency (GHz) 20.20 to 21.20
L.O. frequency (GHz) 19.20
Output frequency (MHz) 1000 to 2000
Conversion gain 60 dB
Output P1dB +15 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Waveguide Flange WR42
Current drain 400 mA
Dimensions 154 (L) x 76 (W) x 51 (H) mm (6.1 x 3 x 2 in)
Weight 700 g (24.7 oz)
Temperature Range -40°C to +60°C
Gain Flatness 2.0 dB max over Band
External Ref 10MHz -5 to 5 dBm
Desensitization -20 dBm (30 to 31 GHz)
Max Input No Damage -10 dBm (20.2 to 21.2 GHz)
All Ka applications where an internal built-in isolator is required
