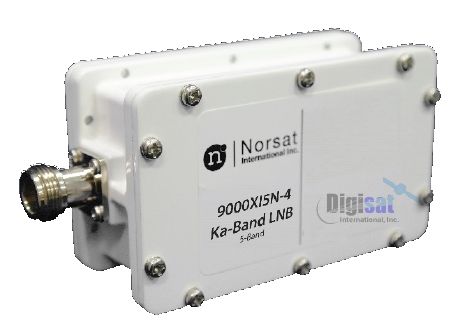

Norsat 9000XI5F-4 Ka-Band 5 Band Isolator Ext. Ref. LNB
9000XI5F-4 Ka-Band PLL LNB
The Norsat 9000XI5F-4 Ka-band PLL LNBs offer five separate sub bands for the utmost in frequency flexibility with improved conversion gain and gain flatness allowing users the ability to reliably receive a narrower band transmission from Ka satellite networks. The 9000XI5F series is available in frequencies ranging from 17.2 to 22.2 GHz, in five sub-bands:
Outline Dimensions
Ordering Info
Input: (waterproof) WR-42 waveguide
Output: Type "F" connector (75 ohm)
Noise Figure (@ +25˚C) 2.7 dB max.
Conversion Gain 55 to 65 dB
Gain Flatness (each band) 4 dBp-p max.
Input VSWR 1.5 : 1 max.
Output VSWR 2.2 : 1 max.
Image Rejection 40 dBc @ L.O. 16.25 GHz
25 dBc @ L.O. 17.25 GHz
0 dBc min. @ other L.O.s
Gain Ripple (@per Channel) +/- 1.5 dBp-p max.
1 dB Gain Compression Point +10 dBm min.
Leakage (@ Input Port) -60 dBm max.
Military, Newsgathering and remote communications where highly flexible frequency changes are required.
