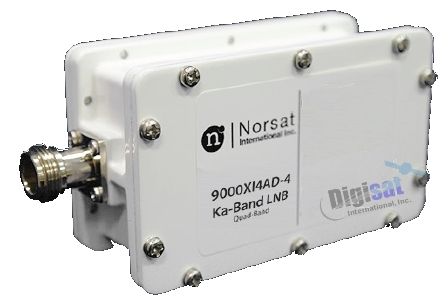

Norsat 9000XI4ADN Ka Quad Band Isolator LNB
9000XI4ADN Ka-Band PLL LNB
The Norsat 9000XI4ADN Ka PLL LNB offers four separate sub bands for the utmost in frequency flexibility with improved conversion gain and gain flatness allowing users the ability to reliably receive a narrower band transmission from Ka satellite networks. The XI4ADN series is available in frequencies ranging from 18.2 to 22.2 GHz, in four sub-bands:
Outline Dimensions
Ordering Info
Input: (waterproof) WR-42 waveguide
Output: Type-N Connector (50 ohm)
Noise Figure (@ +25˚C) 2.0 dB max.
Conversion Gain 58 to 65 dB
Gain Flatness (each band) 4 dBp-p max.
Input VSWR 1.3 : 1 max.
Output VSWR 2.0 : 1 max.
Image Rejection 40 dBc @ band 1
25 dBc @ band 2
0 dBc min. @ other bands
Gain Ripple (@per Channel) +/- 1 dBp-p max.
1 dB Gain Compression Point +10 dBm min.
Leakage (@ Input Port) -60 dBm max.
Military, Newsgathering and remote communications where highly flexible frequency changes are required.
