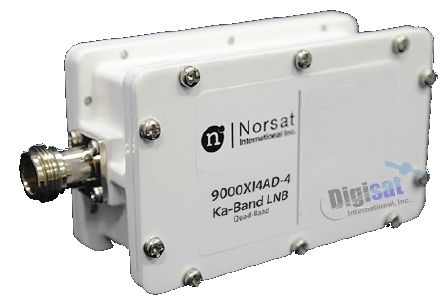

Norsat 9000XI4ADN-4 Ka-Band Quad Band Isolator LNB
9000XI4ADN-4 Ka-Band PLL LNB
The Norsat 9000XI4ADN-4 Ka-band PLL LNB offers four separate sub bands for the utmost in frequency flexibility with improved conversion gain and gain flatness allowing users the ability to reliably receive a narrower band transmission from Ka satellite networks. The XI4ADN series is available in frequencies ranging from 18.2 to 22.2 GHz, in four sub-bands:
Outline Dimensions
Ordering Info
Input: (waterproof) WR-42 waveguide
Output: Type-N Connector (50 ohm)
Noise Figure (@ +25˚C) 2.0 dB max.
Conversion Gain 58 to 65 dB
Gain Flatness (each band) 4 dBp-p max.
Input VSWR 1.3 : 1 max.
Output VSWR 2.0 : 1 max.
Image Rejection 40 dBc @ band 1
25 dBc @ band 2
0 dBc min. @ other bands
Gain Ripple (@per Channel) +/- 1 dBp-p max.
1 dB Gain Compression Point +10 dBm min.
Leakage (@ Input Port) -60 dBm max.
Military, Newsgathering and remote communications where highly flexible frequency changes are required.
