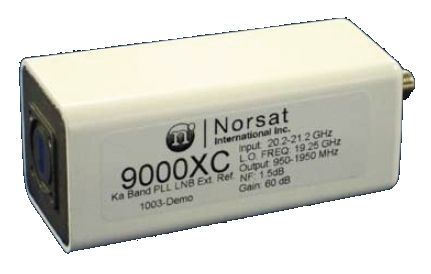

Norsat 9000XCF-2 Ext Ref Ka-Band Series LNB 20.20- 21.20 GHz F-Connector
Ka-Band frequencies from 20.20 to 21.20 GHz, L.O. Stability: ±1.3 ppm , RF Output: Type "F" Female, 1.3 dB Noise Figure
The Norsat 9000XCF-2 Series Ka-Band Low Noise Block Converter is compatible with a wide range of Ka-band satellites and antennas including prime focus and offset reflectors. The 9000XCF-2 Ka-Band LNB operates from 20.20 to 21.20 GHz and features a highly stable local oscillator that's phase locked to external reference. L-Band RF output is 950 to 1950 MHz and RF output connector configuration is a 75-ohm type "F" female connector. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Noise Figure: 1.3 dB
9000XCF-2 Ka-Band Frequencies and Local Oscillator Info:
Norsat 9000XCF-2 LNB Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure: 1.3 dB
L.O. stability: Phase Locked to External Reference
Phase noise: -65 dBc/Hz at 100 Hz, -75 dBc/Hz at 1 kHz, -80 dBc/Hz at 10 kHz, -100 dBc/Hz at 100 kHz
Input VSWR: 2.0 : 1
Output VSWR: 2.0 : 1
Gain Flatness over 1000 MHz: 4.0 dB p-p
Gain variation over temperature: 5 dB max
Conversion gain: 55 dB
Output P1dB: 3 dBm
Power requirements: +15 to +24 V supplied through center conductor of IF cable
Current drain: 160 mA
Input Waveguide: WR42
Dimensions: 111 (L) x 42 (W) x 42 (H) mm
Weight: 350 g
Ext Ref Frequency: 10 MHz (sine-wave), -10 to 0 dBm
Temperature Range: -40°C to +60°C
Frequency Bands Available
|
Typical service |
9000XA-2 |
9000XB-2 |
9000XC-2 |
|
Input Frequency (GHz) |
18.20 to 19.20 |
19.20 to 20.20 |
20.20 to 21.20 |
|
L.O. Frequency |
17.25 |
18.25 |
19.25 |
|
L-Band Output |
950 to 1950 |
950 to 1950 |
950 to 1950 |
Ka-Band Satellite reception, Offset & Prime-Focus satellite antennas, Ka-band Broadband Satellite Internet Services
