Norsat 9000XCDF Dual Ka-Band (20.20 - 22.20 GHz) EXT REF LNB F-Type is available to buy in increments of 1

Band-1: 20.20-21.20GHz, Band-2: 21.2-22.20GHz, L.O. Stability: Ext. Ref., RF Output: F-Type 75 Ohm, 1.6 dB Noise Figure

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000XCDF Dual Ka-Band Ext. Ref. LNB

Norsat 9000XCDF Dual Ka-Band External Reference LNB, Input Frequency: Band-1: 20.20 - 21.20 GHz, Band-2: 21.20 - 22.20 GHz, LO: 19.25GHz @ 13VDC, 20.25GHz @ 18VDC, Stability: Phase Locked to Ext. Ref., Noise Temp: 1.6 dB

The 9000XCDF series LNB is compatible with any satellite system including prime focus, offset reflectors and all modems. The XCDF series is available in three distinct frequency configurations:

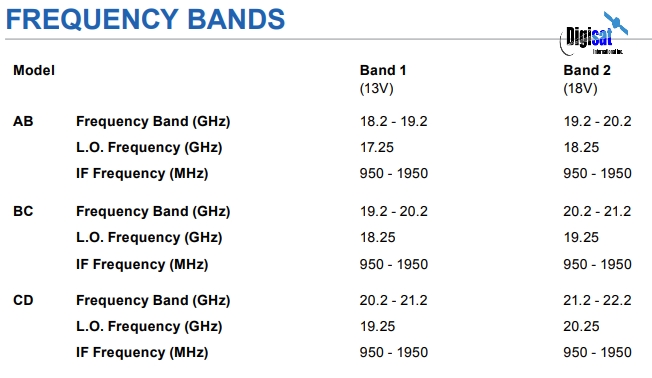

Norsat 9000XCDF frequency bands

The XCDF series Ka LNB also features a highly stable L-Band RF output phase locked to external reference. L-Band RF output connector: 75-ohm F-Type. RF input: precision grooved WR42 waveguide flange.

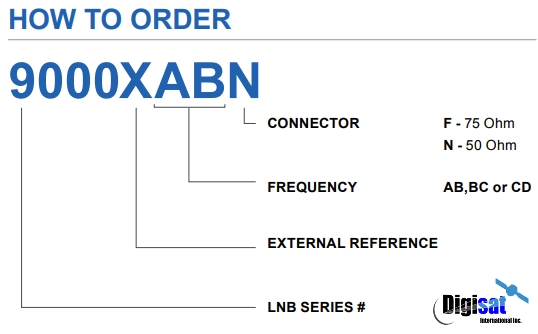

9000 XCDF Ordering Information

Norsat 9000XCDF Ordering Info

Outline Dimensions

Technical Specifications

KEY SPECIFICATIONS
Product Family	9000 Series
Band	Ka-Band
LO Type	External
# of onboard LOs	Dual-band
LO Stability	Phase Locked to External Reference
Noise Figure	1.6 - 1.8 dB
Input Frequency - Band 1	Ka-Band: 20.20 - 21.20 GHz
Input Frequency - Band 2	Ka-Band: 21.20 - 22.20 GHz
Output Frequency 1	L-Band: 950 - 1950 MHz
Output Frequency 2	L-Band: 950 - 1950 MHz
RF
LO Frequency 1	19.25 GHz
LO Frequency 2	20.25 GHz
Control Signal 1	13 V
Control Signal 2	18 V
Phase Noise @ 1KHz offset	-70 dBc/Hz
Phase Noise @ 10KHz offset	-78 dBc/Hz
Phase Noise @ 100KHz offset	-95 dBc/Hz
Conversion Gain	60 dB typ
Gain Variation over operating band	≤ 5 dB p-p
Input VSWR	2.5 : 1
Output VSWR	2.5 : 1
Output P1dB compression point	5 dBm
ELECTRICAL
Power Requirements	12 - 24 V
Current Drain	400 mA
INTERFACE
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	F-Type 75 Ohm
ENVIRONMENTAL
Temperature - Operational	-40 to +60°C
Temperature - Storage	-40 to +80°C
PHYSICAL
Dimensions (L x W x H)	118 x 60 x 45 mm
Weight	400 g
