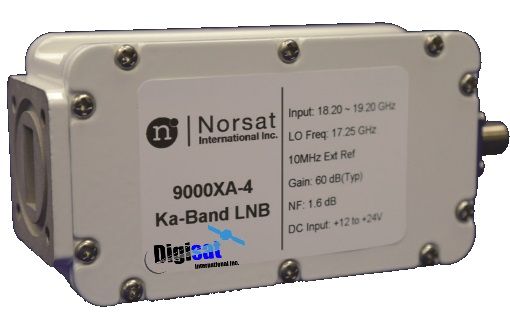

Norsat 9000XAN-4 Ka-Band External Reference LNB (18.2 - 19.2 GHz) Type-N
$946.00
SKU
NST-9000XAN-4
Norsat 9000XAN-4 Ka-Band External Reference LNB (18.2 - 19.2 GHz) Type-N is available to buy in increments of 1
9000XAN-4 Ka-Band External Reference LNB
The Norsat 9000XAN-4 Ka-band externally referenced LNBs offer improved LO stability allowing users to reliably receive a narrower band transmission from Ka satellite networks.
L.O. Stability: Phase Locked to External Reference
Input: (waterproof) WR-42 waveguide
Output: N-Type (50 ohm)
The 9000XAN-4 series LNB offers input frequencies from 18.2 - 19.2 GHz, L.O. 17.25, IF: 950 - 1950 MHz. Additional frequencies are available in five separate sub-bands:
.
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 1.6 dB |
| Input Frequency - Band 1 | Ka-Band: 18.20 - 19.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
RF SPECIFICATIONS |
|
| LO Frequency 1 | 17.25 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS |
|
| Power Requirements | 12 - 24 V |
| Current Drain | 400 mA |
INTERFACE SPECIFICATIONS |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
M & C SPECIFICATIONS |
|
| LED Indicators | None |
ENVIRONMENTAL SPECIFICATIONS |
|
| Temperature - Operational | -30 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL SPECIFICATIONS |
|
| Dimensions (L x W x H) | 118 x 60 x 45 mm |
| Weight | 450 g |
