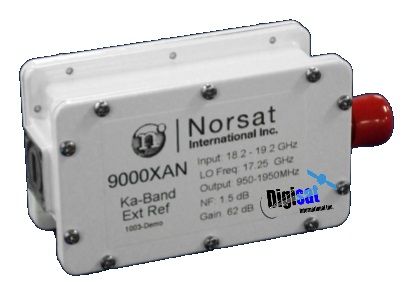

Norsat 9000XAEN KA-BAND Ext Ref LNB (17.30 - 17.80 GHz) N-Type
Login To See Price
SKU
NST-9000XAEN
Norsat 9000XAEN KA-BAND Ext Ref LNB (17.30 - 17.80 GHz) N-Type is available to buy in increments of 1
9000XAEN Ext Ref Ka-Band LNB
The Norsat 9000XAEN Ka-Band Externally Referenced Low Noise Block Down Converter (LNB) covers frequencies from 17.30 to 17.80 GHz with a LO frequency of 16.35 and output frequencies from 950 to 1450 MHz. The 9000X series LNBs deliver amazing flexibility in that they can be ordered in five separate frequency configurations that cover from 17.30 to 22.20 GHz. These five sub bands are as follows:
The 9000XAEN LNB features an extremely stable local oscillator that's Phase locked to External Reference. L-Band IF output is from 950 - 1450 MHz and is provided via a precision N-Type female connector. RF frequency input is a WR42 grooved waveguide flange.
Norsat 9000XAEN LNB Ordering Information
- Noise figure 1.4 dB
- L.O. stability Phase Locked to External Reference
- Phase noise -70 dBc/Hz at 1 kHz (SSB) -85 dBc/Hz at 10 kHz -100 dBc/Hz at 100 kHz
- Input VSWR 2.2 : 1
- Output VSWR 2.0 : 1
- Conversion gain 56 dB
- Output P1dB 5 dBm
- Power requirements +15 to +24 V supplied through center conductor of IF cable
- Current drain 300 mA
- Input Waveguide WR42
- Dimensions 122 (L) x 60 (W) x 45 (H) mm (4.8 x 2.4 x 1.8 in)
- Weight 400g / 14.1 oz
- Ext Ref Frequency 10 MHz (sine-wave), -10 to 0 dBm
- Temperature Range -40°C to +60°C
All Ka-band satellite communications applications such as VSAT, Military, Exede, O3B and SCPC
