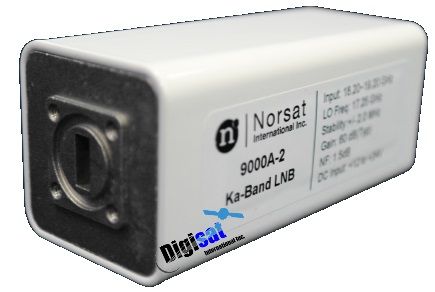

Norsat 9000LC Single-Band Ka (20.2-21.2 GHz) DRO LNB (F-connector)

Norsat 9000LCN Ka-Band DRO LNB (20.2 - 21.2 GHz) N-Type

Norsat 9000LBN Single-Band Ka (19.2 - 20.2 GHz) DRO LNB (Type-N)

Be the first to review this product

$242.00

SKU

NST-9000LC

Norsat 9000LC Single-Band Ka (20.2-21.2 GHz) DRO LNB (F-connector) is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000LC Ka-Band DRO LNB

The Norsat 9000LC Ka-Band DRO Low Noise Block Down Converter (LNB) provides excellent RF performance over Ka satellite frequencies ranging from 20.20 - 21.20 GHz. The 9000LC Series LNB features an extremely stable local oscillator that delivers ±2 MHz L.O. stability. L-Band 950 - 1950 MHz RF output configuration is provided via a 75 ohm F-connector (9000LCF) or Type-N (9000LCN).

RF input: Precision grooved WR42 waveguide flange.

Local oscillator: 19.25 GHz

Noise Figure: 1.5 dB

9000LC Frequency Configurations

9000LC Ordering Information

9000LC Outline Dimensions Diagram

Technical Specifications

Noise figure 1.5 dB max.
L.O. stability ±2.0 MHz
Phase noise (SSB) max -60 dBc/Hz @1KHz -80 dBc/Hz @10KHz -100 dBc/Hz@100KHz
Gain 60 dB typ., 55 dB min. @ full frequency band
Output P1dB + 5 dBm min
DC Power +12V to +24V
DC Current 150 mA Input (waterproof)
WR-42 waveguide Output (waterproof) F-connector (75 ohm) N-connector (optional) (50 ohm)
Dimensions 111mm (L) x 42mm (W) x 42mm (H)
Weight 300 g
Operating Temperature -30 to + 60°C
Storage Temperature -40°C to +80°C

Applications

VSAT applications, TVRO, Broadband Services
