Norsat 9000LBF Ka-Band DRO LNB (19.2 - 20.2 GHz) Type-F

Norsat 9500HBCF Dual Ka-Band (19.2-21.2 GHz) PLL LNB F-Type ±50 kHz

Norsat 9000XBCF Dual Ka-Band (19.20 - 21.20 GHz) EXT REF LNB F-Type

Be the first to review this product

$242.00

SKU

NST-9000LBF

Norsat 9000LBF Ka-Band DRO LNB (19.2 - 20.2 GHz) Type-F is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000LBF Ka-Band DRO LNB

The Norsat 9000LBF Ka-Band DRO Low Noise Block Down Converter (LNB) provides excellent RF performance over Ka-Band satellite frequencies ranging from 19.20 - 20.20 GHz. The 9000LBF Series Norsat LNB features an extremely stable local oscillator that delivers ±2 MHz L.O. stability. L-Band 950 - 1950 MHz RF output configuration is provided via a 75-ohm type-F female connector. RF frequency input is accomplished with a precision grooved WR42 waveguide flange.

Local oscillator frequency: 18.25 GHz

Noise Figure: 1.5 dB

Norsat 9000LBF Ka-Band LNB Frequency Configurations

Norsat 9000LBF LNB Ordering Information

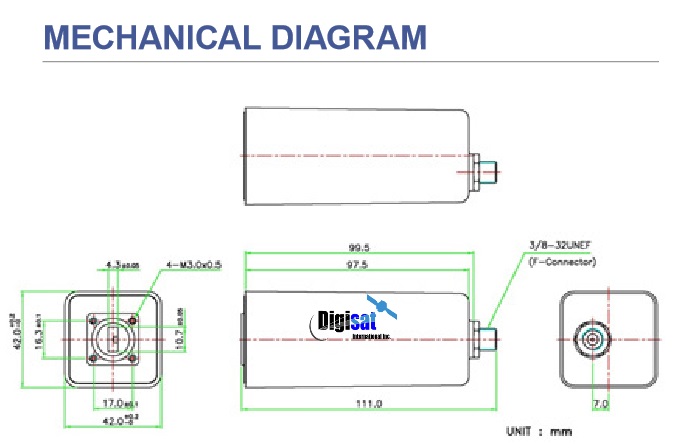

Norsat 9000LBF LNB Outline Dimensions Diagram

Technical Specifications

Noise figure 1.5 dB max.
L.O. stability ±2.0 MHz
Phase noise (SSB) max -60 dBc/Hz @1KHz -80 dBc/Hz @10KHz -100 dBc/Hz@100KHz
Gain 60 dB typ., 55 dB min. @ full frequency band
Output P1dB + 5 dBm min
DC Power +12V to +24V
DC Current 150 mA Input (waterproof)
WR-42 waveguide Output (waterproof) F-connector (75 ohm) N-connector (optional) (50 ohm)
Dimensions 111mm (L) x 42mm (W) x 42mm (H)
Weight 300 g
Operating Temperature -30 to + 60°C
Storage Temperature -40°C to +80°C

Applications

Ka-Band Satellite service reception, Commercial TVRO, Broadband Services
