Norsat 9000LA Ka-Band (18.2 - 19.2 GHz) DRO LNB
$242.00
SKU
NST-9000LA
Norsat 9000LA Ka-Band (18.2 - 19.2 GHz) DRO LNB is available to buy in increments of 1
9000LA Ka-Band DRO LNB

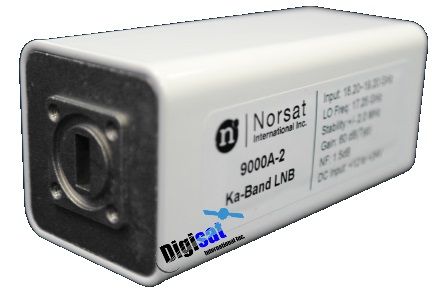

The Norsat 9000LA Ka-Band DRO Low Noise Block Down Converter (LNB) provides excellent RF performance over Ka-Band satellite frequencies ranging from 18.20 - 19.20 GHz. The 9000LA Series LNB features an extremely stable local oscillator that delivers ±2 MHz L.O. stability. L-Band 950 - 1950 MHz RF output configuration is via a F-connector or Type-N. RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Local oscillator frequency: 17.25 GHz
Noise Figure: 1.5 dB
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | DRO |
| # of onboard LOs | Single-band |
| LO Stability | +/- 2 MHz |
| Noise Figure | 1.5 dB |
| Input Frequency - Band 1 | Ka-Band: 18.20 - 19.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
RF SPECIFICATIONS |
|
| LO Frequency 1 | 17.25 GHz |
| Phase Noise @ 1KHz offset | -60 dBc/Hz |
| Phase Noise @ 10KHz offset | -75 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 5 dBm |
| Gain Flatness Ripple | ≤ 5 dB p-p |
ELECTRICAL SPECIFICATIONS |
|
| Power Requirements | 12 - 24 V |
| Current Drain | 200 mA |
INTERFACE SPECIFICATIONS |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
ENVIRONMENTAL SPECIFICATIONS |
|
| Temperature - Operational | -30 to +60°C |
| Temperature - Storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS |
|
| Dimensions (L x W x H) | 111 x 42 x 42 mm |
| Weight | 300 g |
Ka-Band Satellite service reception, Commercial TVRO, Broadband Services
