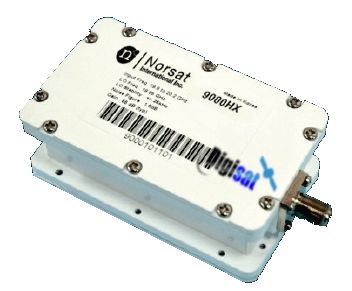

Norsat 9000HX-O3B-BF DUO Series Ka-Band O3B Networks LNB Type-F
9000HX-O3B-BF Ka LNB
The Norsat 9000HX-O3B-BF Series Ka-Band Low Noise Block Converter is compatible with all O3B Networks Satellite antennas including prime focus and offset reflector models. The 9000HX O3B Ka-Band LNB operates over O3B-B Band frequencies from 18.372 to 19.300. The Norsat 9000HX-O3B-BF LNB is approved for use on O3B satellite networks and offers a highly stable local oscillator that delivers ±1.5 ppm in PLL. L-Band RF output frequency is 972 to 1900 MHz. L-Band RF output connector is a 50-ohm type-N female. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Noise Figure: 1.5 dB
O3B Ka-Band Frequencies:
TYPICAL SPECIFICATIONS
|
Noise Figure |
1.5 dB max. |
|
L.O. stability |
±1.5 ppm in PLL |
|
Phase noise |
-70dBc @ 1KHz -80dBc @ 10KHz |
|
Reference phase noise |
-145dBc @ 1KHz |
|
Input return loss |
10dB max. |
|
Output return loss |
10dB max. |
|
Conversion gain |
55dB (min), 58 dB (typ) |
|
Gain Flatness over frequency |
± 1.5 dB in any 216MHz |
|
Output P1dB |
+5 dBm min |
|
IP3 |
+15 dBm min |
|
Image rejection |
40 dBc min. |
|
Output impedance |
_____ |
|
DC power |
+11 to +26V |
|
DC current |
300 mA |
|
Input waveguide |
WR42 |
|
Output connector |
N (Female) |
|

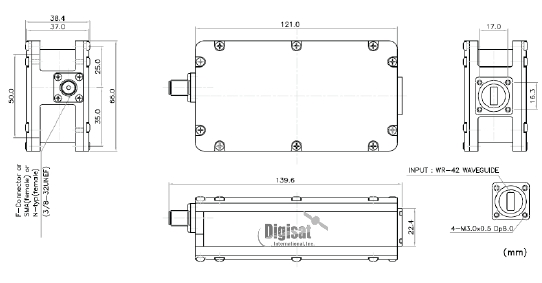

Dimensions |
137(L) x 70(W) x 59(H) mm |
|
Weight |
500g |
|
Operating Temperature |
-40 to + 55°C |
|
Automatic switch to internal PLL when Ext. Ref. is not available. |
|

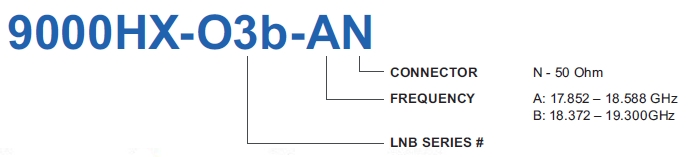

Frequency Bands Available
|
O3B-A |
O3B-B |
|
17.852 to 18.588 |
18.372 to 19.300 |
|
16.8 |
17.4 |
