Norsat 9000HX-O3B-AF DUO Series Ka-Band O3B Networks LNB Type-F

Norsat 9500HCDF Dual Ka-Band (20.2-22.2 GHz) PLL LNB F-Type ±50 kHz

Norsat 9000XBF-4 Ka-Band External Reference LNB (19.2-20.2 GHz) F-Connector

Be the first to review this product

$880.00

SKU

NST-9000HX-O3B-AF

Norsat 9000HX-O3B-AF DUO Series Ka-Band O3B Networks LNB Type-F is available to buy in increments of 1

O3B-AN Ka-Band frequencies: 17.852 to 18.588 GHz, L.O. Stability: ±1.5 ppm in PLL , RF Output: F-connector, 1.5 dB Noise Figure

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

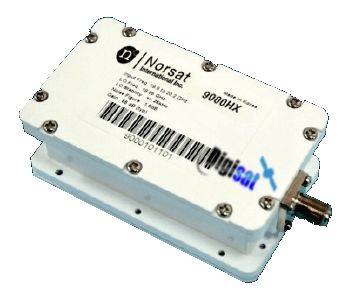

9000HX-O3B-AF DUO O3B LNB

Norsat 9000HX-O3B-AF Series Ka-Band Low Noise Block Converter is compatible with all O3B Networks Satellite antennas including prime focus and offset reflector models. The 9000HX O3B-AF Ka-Band LNB operates over O3B-A Band frequencies from 17.852 to 18.588 GHz.. The Norsat 9000HX-O3B LNB is approved for use on O3B satellite networks and offers a highly stable local oscillator that delivers ±1.5 ppm in PLL. L-Band RF output frequency is 1052 to 1788 MHz. L-Band RF output connector is a 50-ohm type-N female. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.

Noise Figure: 1.5 dB

O3B Ka-Band Frequencies:

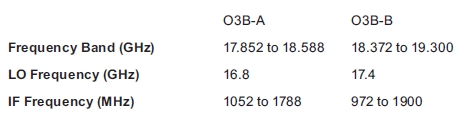

Norsat 9000HX O3B LNB Frequency chart

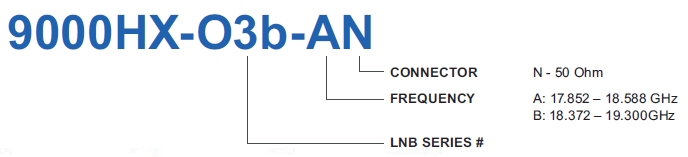

Norsat 9000HX-O3B LNB Ordering Information

Outline Diagram

Technical Specifications

KEY SPECIFICATIONS
Product Family	9000 Series
Band	Ka-Band
LO Type	PLL
# of onboard LOs	Dual-mode
LO Stability	± 50 KHz in PLL mode
Noise Figure	1.5 dB
Input Frequency - Band 1	Ka-Band: 17.852 - 18.588 GHz
Output Frequency 1	L-Band: 1052 - 1788 MHz

RF SPECIFICATIONS
LO Frequency 1	16.8 GHz
Phase Noise @ 100Hz offset	-60 dBc/Hz
Phase Noise @ 1KHz offset	-70 dBc/Hz
Phase Noise @ 10KHz offset	-80 dBc/Hz
Conversion Gain	58 dB typ
Gain Variation over operating band	≤ 5 dB p-p
Input VSWR	2.0 : 1
Output VSWR	2.0 : 1
Output P1dB compression point	5 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements	11 - 26 V
Current Drain	350 mA

INTERFACE SPECIFICATIONS
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-40 to +60°C
Temperature - Storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	104 x 60 x 39 mm
Weight	400 g
