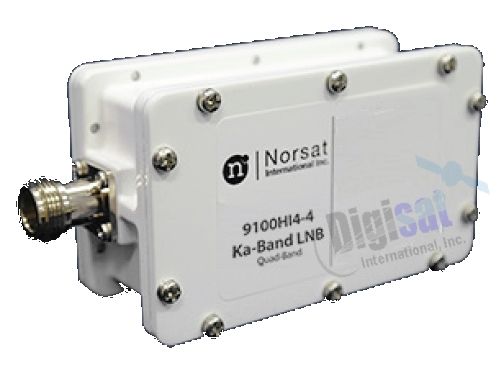

Norsat 9000HI4-4 Ka-Band 4 Band Isolator PLL LNB
9000HI4-4 Ka-Band PLL LNB

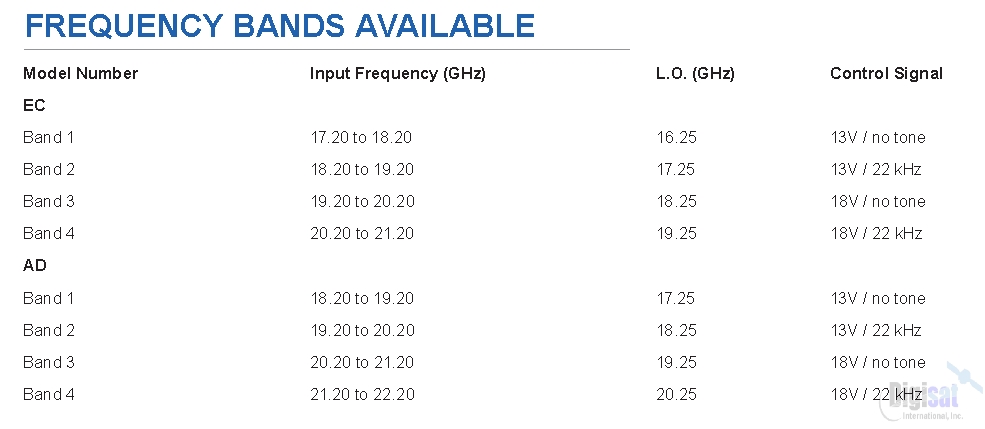

The Norsat 9000HI4-4 Ka-band PLL LNBs offer four separate sub bands for the utmost in frequency flexibility with improved LO stability allowing users to reliably receive a narrower band transmission from Ka satellite networks. The 9000HI4 series is available in frequencies ranging from 17.2 to 22.2 GHz, in four sub-bands:

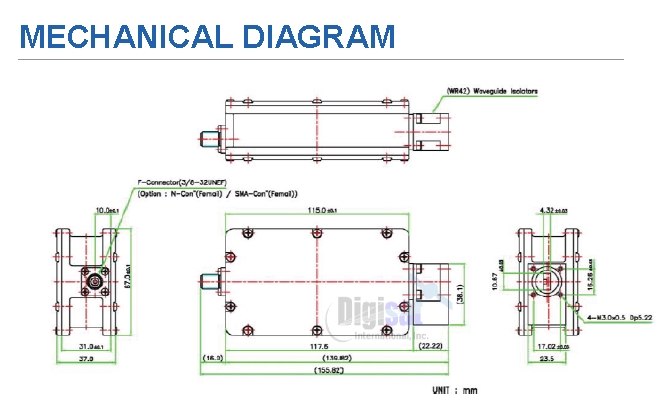

Outline Dimensions
Ordering Info
Input: (waterproof) WR-42 waveguide
Output: Type-N (50 ohm) or "F" connector
Noise Figure: (@ +25˚C) 2.0 dB max.
L.O. Stability: (@ over temp.) +/- 10 KHz
Conversion Gain: 58 to 65 dB
Gain Flatness: (each band) 4 dBp-p max.
Phase Noise: -63 dBc/Hz (@ 100 Hz)
-73 dBc/Hz (@ 1 kHz)
-80 dBc/Hz (@ 10 kHz)
-95 dBc/Hz (@ 100 kHz)
Input VSWR: 1.3 : 1 max.
Output VSWR: 2.0 : 1 max.
Image Rejection: 40 dBc @ band 1
25 dBc @ band 2
0 dBc min. @ other bands
Military, Newsgathering and remote communications where highly flexible frequency changes are required.
