9000HD-3N Ka LNB

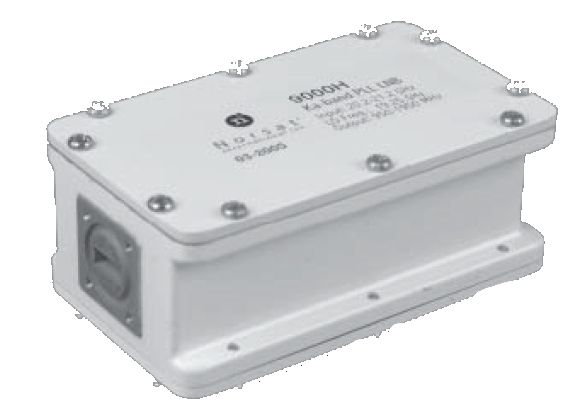

The Norsat 9000HD-3N Series Ka-Band PLL Low Noise Block Converter provides exceptional RF performance over Ka-Band satellite frequencies ranging from 21.20 to 22.20 GHz. The 9000HD-3N LNB features an extremely stable local oscillator that delivers ±70 kHz (3 ppm) L.O. stability. L-Band (950 to 1950 MHz) RF output configuration is provided via a 75-ohm F-connector. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.

Local oscillator frequency: 20.25 GHz

Noise Figure: 1.6 dB

Outline Diagram
