Norsat 9000HD-3F Ka-Band PLL LNB (21.20-22.20 GHz) Type-F

Norsat 9000LBN Single-Band Ka (19.2 - 20.2 GHz) DRO LNB (Type-N)

Norsat 9200HB-4 Ka-Band PLL LNB (19.2 - 20.2 GHz) ±25 kHz F or N-Type

Be the first to review this product

$1,265.00

SKU

NST-9000HD-3F

Norsat 9000HD-3F Ka-Band PLL LNB (21.20-22.20 GHz) Type-F is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

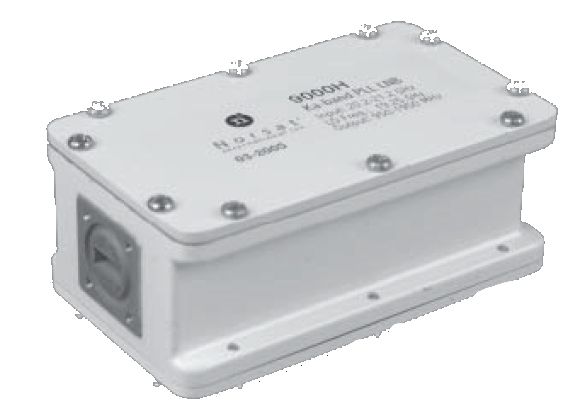

9000HD-3F Ka-Band LNB

The Norsat 9000HD-3F Series Ka-Band PLL Low Noise Block Converter (LNB) provides exceptional RF performance over Ka-Band satellite frequencies ranging from 21.20 to 22.20 GHz. The Norsat 9000HD-3F series LNB features an extremely stable local oscillator that delivers ±70 kHz (3 ppm) L.O. stability. L-Band (950 to 1950 MHz) RF output configuration is provided via a 75-ohm Type-F connector. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.

Local oscillator frequency: 20.25 GHz

Noise Figure: 1.6 dB

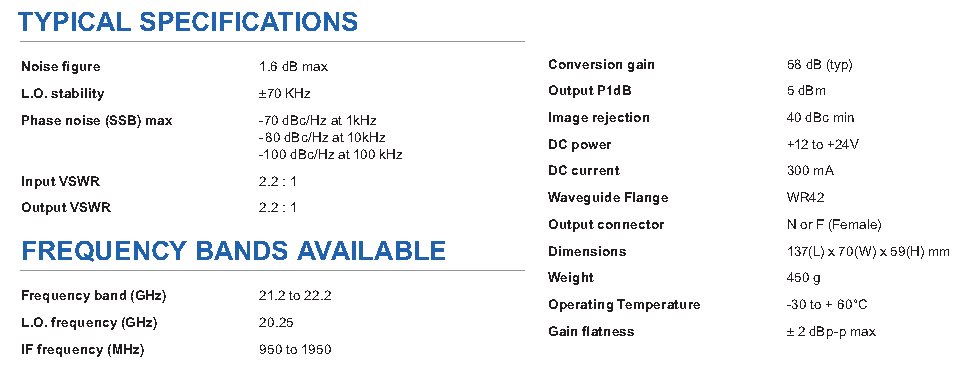

Norsat 9000HD-3F Ka-Band LNB Specifications
