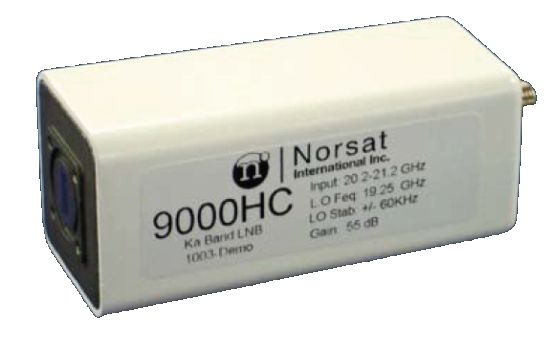

Norsat Compact Series 9000HC-2 Ka-Band PLL LNB 20.20- 21.20 GHz
Ka-Band frequency range from: 20.20 to 21.20 GHz, L.O. Stability: ±40.0 kHz , RF Output: F-connector or Type-N, 1.3 dB Noise Figure
The Norsat 9000HC-2 series Ka-Band Compact PLL Low Noise Block Converter provides exceptional RF performance over Ka-Band satellite frequencies ranging from 20.20 to 21.20 GHz. The 9000HC-2 LNB features an incredibly stable local oscillator that delivers ±40 kHz (2 ppm) L.O. stability. L-Band (950 to 1950 MHz) RF output configuration is provided via either a 50-ohm type-N female connector, or an F-connector. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Local oscillator frequency: 19.25 GHz
Noise Figure: 1.3 dB
Norsat 9000HC-2 Series LNB Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure: 1.3 dB
L.O. stability ±40 kHz (2 ppm)
Phase noise (SSB): -75 dBc/Hz at 1 kHz, -80 dBc/Hz at 10 kHz, -100 dBc/Hz at 100 kHz
Input VSWR: 2.2 : 1
Output VSWR: 2.0 : 1
Gain Flatness over 1000 MHz: 4.0 dB p-p
Gain variation over temperature 5 dB max
Conversion gain 55 dB
Output P1dB 3 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 160 mA
Input Waveguide WR42
Dimensions 111 (L) x 42 (W) x 42 (H) mm
Weight 350 g
Temperature Range -40°C to +60°C
Frequency Bands Available
|
9000HA-2 |
9000HB-2 |
9000HC-2 |
|
18.20 to 19.20 |
19.20 to 20.20 |
20.20 to 21.20 |
|
17.25 |
18.25 |
19.25 |
|
950 to 1950 |
950 to 1950 |
950 to 1950 |
Ka-Band Earth Station Antennas, VSAT Network Systems, Inmarsat Global Express, O3B Terminals
