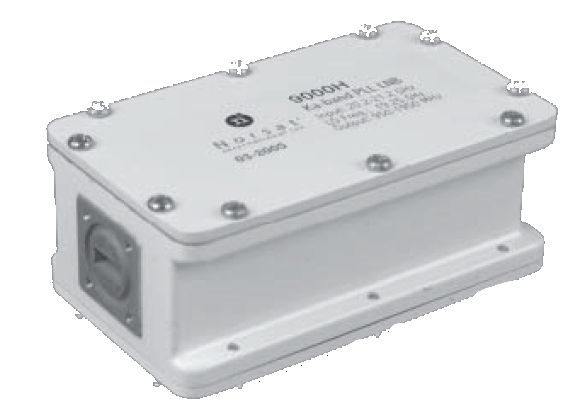

Norsat 9000HBN Series Ka-Band PLL LNB 19.20- 20.20 GHz Type-N Connector
Ka-Band frequencies from: 19.20 to 20.20 GHz, L.O. Stability: ±70.0 kHz , RF Output: Female Type-N Connector, 1.4 dB Noise Figure
The Norsat 9000HBN Series Ka-Band PLL Low Noise Block Converter provides exceptional RF performance over Ka-Band satellite frequencies ranging from 19.20 to 20.20 GHz. The 9000HBN LNB features an extremely stable local oscillator that delivers ±70 kHz (3 ppm) L.O. stability. L-Band (950 to 1950 MHz) RF output configuration is provided via a 50-ohm type-N female connector. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Local oscillator frequency: 18.25 GHz
Noise Figure: 1.4 dB
Norsat 9000HBN Series LNB Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure: 1.4 dB
L.O. stability ±70 kHz (2 ppm)
Phase noise (SSB): -70 dBc/Hz at 1 kHz, -85 dBc/Hz at 10 kHz, -100 dBc/Hz at 100 kHz
Input VSWR: 2.2 : 1
Output VSWR: 2.0 : 1
Gain Flatness over 1000 MHz: 4.0 dB p-p
Gain variation over temperature 5 dB max
Conversion gain 55 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 160 mA
Input Waveguide WR42
Dimensions 122 (L) x 60 (W) x 45 (H) mm
Weight 14 oz.
Temperature Range -40°C to +60°C
Frequency Bands Available
|
9000HA |
9000HB |
9000HC |
|
18.20 to 19.20 |
19.20 to 20.20 |
20.20 to 21.20 |
|
17.25 |
18.25 |
19.25 |
|
950 to 1950 |
950 to 1950 |
950 to 1950 |
Ka-Band VSAT Antennas, Prime Focus & Offset reflectors, TVRO, Ka-Band Broadband Services
