Norsat 5250R Series C-Band PLL LNB (3.4 - 4.2 GHz) with Interference Rejection

Norsat 5200I Series INSAT C-Band PLL LNB (4.5 - 4.8 GHz)

Norsat 3020X C-Band (3.4 to 4.2 GHz) Externally Referenced PLL LNB

Be the first to review this product

$150.00

SKU

NST-5250R

Norsat 5250R Series C-Band PLL LNB (3.4 - 4.2 GHz) with Interference Rejection is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

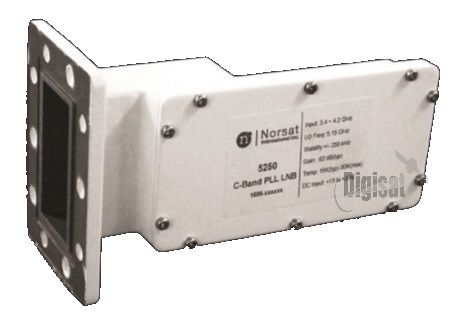

NORSAT 5250R C-BAND PLL LNB with Interference Rejection

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

Input Frequency: 3.4 - 4.2 GHz
L.O. Stability: +/-250 kHz
Noise Figure: 15K typical
Output Connector: Type "N" or F Female
L.O. Frequency: 5.15 GHz
Conversion Gain: 62 dB typical
Output frequency (MHz) 950 – 1750 MHz

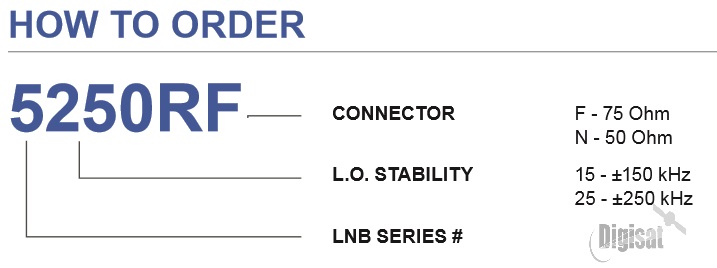

Norsat 5250R C-Band PLL LNB Ordering Configuration

Norsat 5250R LNB Interfence Rejection Specifications Chart

Technical Specifications

TYPICAL SPECIFICATIONS

L.O. stability ±150 kHz, ±250 kHz
Noise temperature 15 K typ., 30 K max
Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
Input VSWR & Output VSWR 2.5:1
Conversion gain 62 dB typical 55 dB min 70 dB max
Output P1dB 5 dBm
Power requirements 12 - 24V DC supplied through center conductor of IF cable
Current drain 250 mA
Input Waveguide CPR 229G

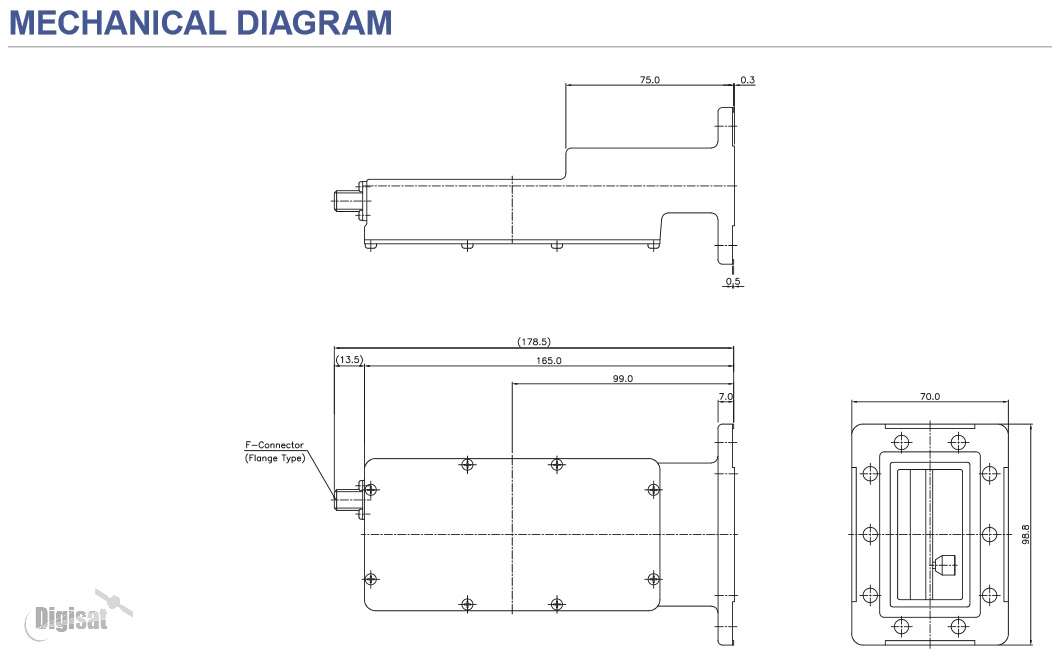

Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
Weight 580 g / 20.5 oz
Temperature Range -40°C to +60°C

Applications

Ideal for DBV (Digital Broadcast Video), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where interference rejection is required.
