Norsat 4207AN DRO Ku-Band VSAT LNB (Type-N)
DRO, Ku-Band- 11.70 to 12.20 GHz, 250 kHz L.O. Stability, Output P1dB: 8 dBm

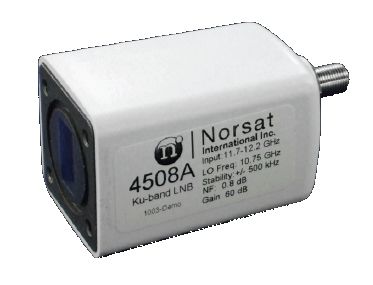

The Norsat DRO 4207AN Ku-Band LNB provides optimum RF performance and great phase noise characteristics over Ku-Band frequencies from 11.70- 12.20 GHz. The 4207AN series LNBs are available with a type-N connector output and offer a local oscillator frequency of 10.75 GHz. This LNB comes standard with a noise figure rating of .7 dBm. RF Waveguide input is WR75.
±250 kHz L.O. Stability
Norsat 4207AN Series Ordering Information
TYPICAL SPECIFICATIONS
Noise Figures: 0.6 to 0.8 dB depending on model number
L.O. stability: ±150 kHz to ±500 kHz (over temperature excl offset) depending on model number
Phase noise: -65 dBc/Hz at 1kHz, (SSB) -80 dBc/Hz at 10kHz, -100 dBc/Hz at 100kHz
Input VSWR: 2.2 : 1
Output VSWR: 2.2 : 1
Conversion gain: 62 dB
Output P1dB: 8 dBm
Power requirements: +15 to +24 V supplied through center conductor of IF cable
Current drain: 120 mA
Input Waveguide: WR75
Dimensions: 85 (L) x 43 (W) x 43 (H) mm (3.3 x 1.7 x 1.7 in)
Weight: 120 g / 4.2 oz
Temperature Range: -40°C to +60°C
FREQUENCY BANDS AVAILABLE
|
Typical service |
4000A |
4000B |
4000C |
|
Input frequency (GHz) |
11.70 to 12.20 |
12.25 to 12.75 |
10.95 to 11.70 |
|
L.O. frequency (GHz) |
10.75 |
11.30 |
10.00 |
|
Output frequency (MHz) |
950 to 1450 |
950 to 1450 |
950 to 1700 |
Ku-Band TVRO, Video & Audio Broadcast Feed Reception
