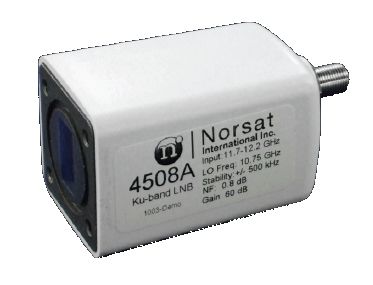

Norsat 4000 Series DRO Ku-Band VSAT Low Noise Block Converter
DRO, Ku-Band, Output P1dB: 8 dBm
The Norsat DRO 4000 Series Ku-Band LNB provides optimum RF performance and great phase noise characteristics over three frequency bands- A- 11.7 to 12.20 GHz, B- 12.25 to 12.75 GHz, and C- 10.95 to 11.70 GHz. The 4000 series LNBs are available with a type-F connector output and offer local oscillator frequencies of 10.0, 11.30 and 10.75 GHz depending on which frequency band is selected. This LNB also comes standard with noise figure ratings of .6, .7, or .8 dBm. RF Waveguide input is WR75.
±150 kHz, ±250 kHz, or ±500 kHz Local Oscillator Stability configurations are available.
Norsat 4000 Series Ordering Information
TYPICAL SPECIFICATIONS
Noise Figures: 0.6 to 0.8 dB depending on model number
L.O. stability: ±150 kHz to ±500 kHz (over temperature excl offset) depending on model number
Phase noise: -65 dBc/Hz at 1kHz, (SSB) -80 dBc/Hz at 10kHz, -100 dBc/Hz at 100kHz
Input VSWR: 2.2 : 1
Output VSWR: 2.2 : 1
Conversion gain: 62 dB
Output P1dB: 8 dBm
Power requirements: +15 to +24 V supplied through center conductor of IF cable
Current drain: 120 mA
Input Waveguide: WR75
Dimensions: 85 (L) x 43 (W) x 43 (H) mm (3.3 x 1.7 x 1.7 in)
Weight: 120 g / 4.2 oz
Temperature Range: -40°C to +60°C
FREQUENCY BANDS AVAILABLE
|
Typical service |
4000A |
4000B |
4000C |
|
Input frequency (GHz) |
11.70 to 12.20 |
12.25 to 12.75 |
10.95 to 11.70 |
|
L.O. frequency (GHz) |
10.75 |
11.30 |
10.00 |
|
Output frequency (MHz) |
950 to 1450 |
950 to 1450 |
950 to 1700 |
Ku-Band TVRO, Video & Audio Broadcast Feed Reception
