Norsat 3225IF C-Band (4.500 to 4.800 GHz) PLL LNB (F-Connector)
$315.00
SKU
NST-3225IF
Norsat 3225IF C-Band (4.500 to 4.800 GHz) PLL LNB (F-Connector) is available to buy in increments of 1
High Stability, Type "F" connector RF output, 25K Noise Temp, ±10 kHz LO stability, 4.50 - 4.80 GHz, 5.95 GHz L.O. Frequency, 1150 to 1450 MHz output
3225IF High Stability PLL C-Band
Norsat 3225IF C-Band PLL LNB has a local oscillator frequency of 5.95 GHz and operates from 4.50 to 4.80 GHz. The 3225IF LNB offers a 25K noise temperature configuration. This High Stability Norsat PLL C-Band LNB has a CPR229 waveguide input and provides Local Oscillator stability of ±10 kHz. F-connector, L-Band RF Output 1150 - 1450 MHz. Conversion Gain: 62.0 dB

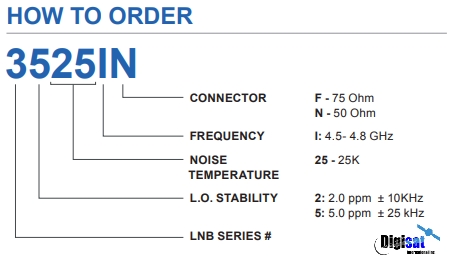

Norsat 3225IF Ordering Information
PLL LNB Outline Diagram
KEY SPECIFICATIONS |
|
| Product Family | 3000 Series |
| Band | C-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 10 kHz |
| Noise Figure | 25 K |
| Input Frequency - Band 1 | C-Band: 4.50 - 4.80 GHz |
| Output Frequency 1 | L-Band: 1150 - 1450 MHz |
RF SPECIFICATIONS |
|
| LO Frequency 1 | 5.95 GHz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Conversion Gain | 62 dB typ |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Input VSWR | 2.3 : 1 |
| Output VSWR | 2.3 : 1 |
| Output P1dB compression point | 9 dBm |
ELECTRICAL SPECIFICATIONS |
|
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
INTERFACE SPECIFICATIONS |
|
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | F-75 Ohm |
M & C SPECIFICATIONS |
|
| LED Indicators | None |
ENVIRONMENTAL SPECIFICATIONS |
|
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS |
|
| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 575 g |
