Norsat 3125CN C-Band (3.625 to 4.2 GHz) PLL LNB (Type-N)
$405.00
SKU
NST-3125CN
Norsat 3125CN C-Band (3.625 to 4.2 GHz) PLL LNB (Type-N) is available to buy in increments of 1
High Stability, Type-N connector RF output, 25K Noise Temp, ±5 kHz LO stability, 3.625 - 4.2 GHz, 5.15 GHz L.O. Frequency, 950 to 1750 MHz output
3125CN High Stability PLL C-Band
Norsat 3125CN C-Band PLL LNB has a local oscillator frequency of 5.15 GHz and operates from 3.625 to 4.20 GHz. The 3125CN LNB offers a 25K noise temperature configuration. This High Stability Norsat PLL C-Band LNB has a CPR229 waveguide input and provides Local Oscillator stability of ±5 kHz, Type-N connector, L-Band RF Output 950 - 1750 MHz, Conversion Gain: 62.0 dB

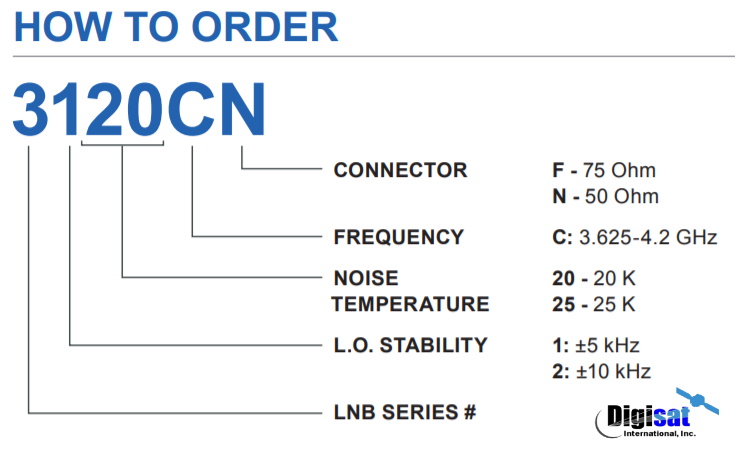

Norsat 3125CN Ordering Information

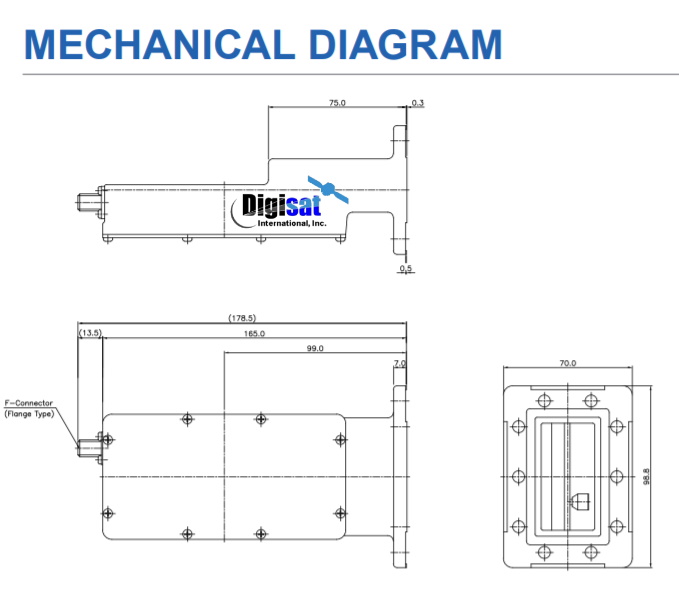

PLL LNB Outline Diagram
KEY SPECIFICATIONS |
|
| Product Family | 3000 Series |
| Band | C-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 5 kHz |
| Noise Figure | 25 K |
| Input Frequency - Band 1 | C-Band: 3.625 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1525 MHz |
RF SPECIFICATIONS |
|
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Conversion Gain | 62 dB typ |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Input VSWR | 2.3 : 1 |
| Output VSWR | 2.3 : 1 |
| Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS |
|
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
INTERFACE SPECIFICATIONS |
|
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | Type-N |
M & C SPECIFICATIONS |
|
| LED Indicators | None |
ENVIRONMENTAL SPECIFICATIONS |
|
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS |
|
| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 575 g |
3.625 to 4.2 GHz, VSAT, Tx/Rx, TVRO, Maritime
